Echo EG-3500 S/N: 00000 - 02737 Electric Generator

Model: EG-3500 S/N: 00000 - 02737

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?

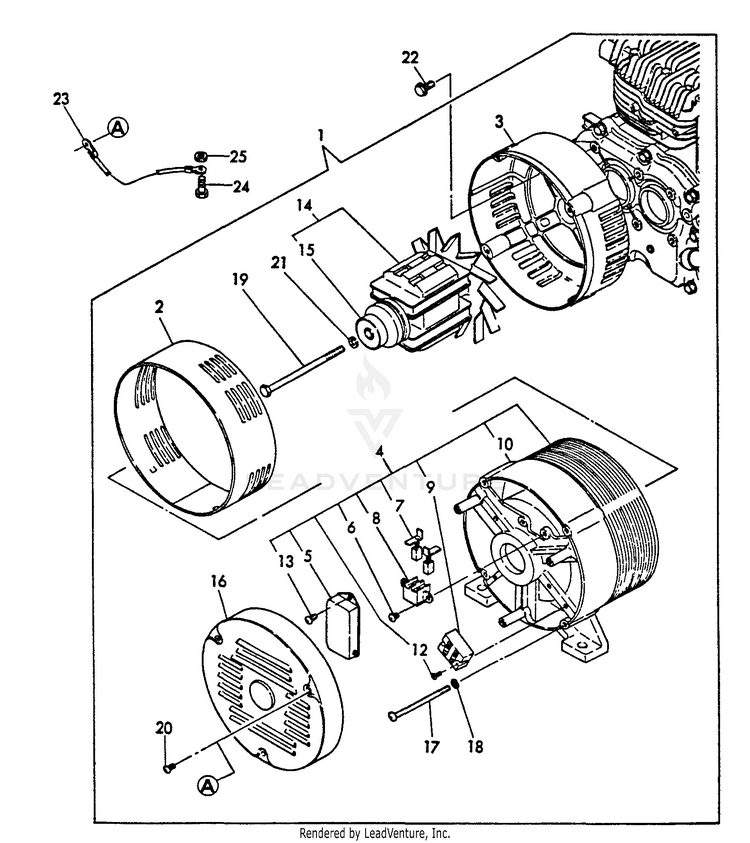

product name

Generator

...
...
1
GENERATOR 3.0 KVA ECH-Y18382074110
...
2
CLAMP ECH-Y18382074140
...
3
COVER, FRONT ECH-Y18382074150
...
4
STATOR ASSY ECH-Y18382074700
...
5
A.V.R. ECH-Y18362174170
...
6
SCREW - 5x14 ECH-Y18382074300
...
7
BRUSH ECH-Y18382074220
...
8
HOLDER, BRUSH ECH-Y18382074240
...
9
TERMINAL ECH-Y18382074270
...
10
COVER - REAR ECH-Y18382074260
...
12
SCREW - 5x14 ECH-Y18382074300
...
13
SCREW - 4x10 ECH-Y18362074310
...
14
ROTOR ASSY ECH-Y18382074350
...
15
BEARING, BALL ECH-Y18382074360
...
16
COVER, END ECH-Y18382074450
...
17
BOLT, THROUGH ECH-Y18382074410
...
18
LOCKWASHER - 6 ECH-Y22217060000
...
19
BOLT ECH-Y18382074430
...
20
SCREW - 4x10 ECH-Y18362091290
...
21
LOCKWASHER - 10 ECH-Y22217100000
...
22
BOLT - 8x20 - PLATED ECH-Y26106080202
...
23
WIRE, EARTH ECH-Y18362174450
...
24
BOLT - 6x16 - PLATED ECH-Y26113060162
...
25
LOCKNUT - 6 - PLATED ECH-Y26753060002
...
...
...
...
...
