Echo EG-3500 S/N: 00000 - 02737 Electric Generator

Model: EG-3500 S/N: 00000 - 02737

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

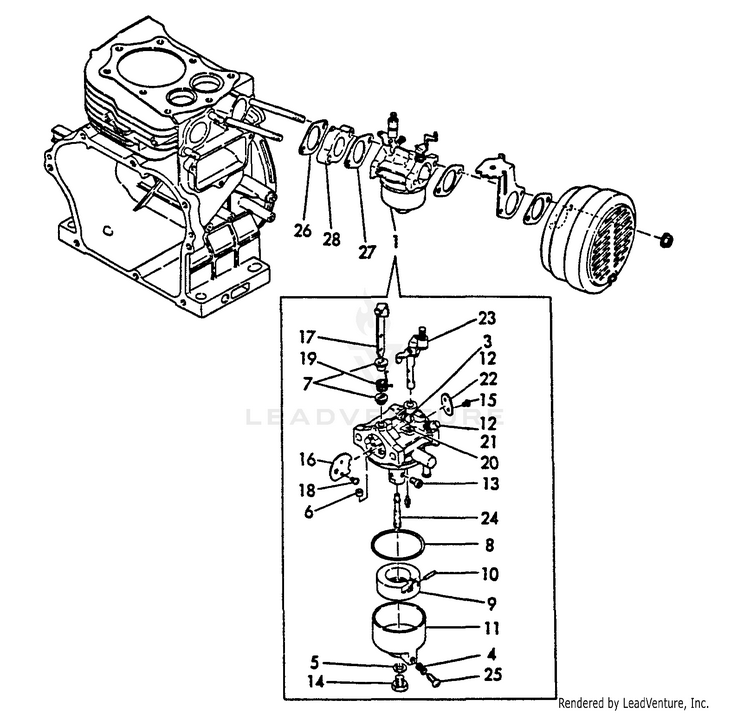

Carburetor

...
...
1
CARBURETOR ECH-Y16087056010
...
3
SCREW ECH-Y18123056370
...
4
SPRING ECH-Y18123056380
...
5
WASHER ECH-Y16081056550
...
6
RING, CHOKE SHAFT ECH-Y16081056580
...
7
RING, CHOKE LEVER ECH-Y16081056590
...
8
GASKET ECH-Y16021056610
...
9
FLOAT ECH-Y16081056620
...
10
PIN ECH-Y16061056631
...
11
BODY ECH-Y16081056640
...
12
SPRING ECH-Y18113056640
...
13
JET, MAIN ECH-Y16081056650
...
14
BOLT ECH-Y16061056660
...
15
SCREW ECH-Y16012056670
...
16
VALVE, CHOKE ECH-Y16087056680
...
17
LEVER ECH-Y16087056700
...
18
SPRING ECH-Y16071056710
...
19
SPRING, CHOKE ECH-Y16087056720
...
20
JET, PILOT ECH-Y16081056790
...
21
SCREW, PILOT ECH-Y16061056750
...
22
VALVE, THROTTLE ECH-Y16081056780
...
23
THROTTLE SHAFT ASSY ECH-Y16087056770
...
24
NOZZLE, MAIN ECH-Y16081056820
...
25
SCREW ECH-Y16061056900
...
26
GASKET ECH-Y16081056140
...
27
GASKET ECH-Y16081056150
...
28
SPACER ECH-Y16081056160
...
...
...
...
...
