Echo EG-3500 S/N: 00000 - 02737 Electric Generator

Model: EG-3500 S/N: 00000 - 02737

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

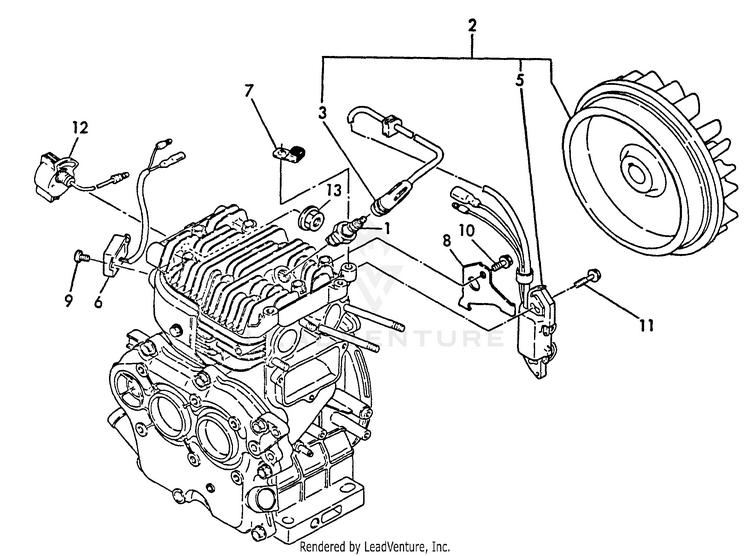

Ignition, Stop Switch

...
...
1
SPARK PLUG ECH-Y16023278010
...
2
FLYWHEEL W/MAGNET ECH-Y16084078060
...
3
CAP, PLUG ECH-Y16034378040
...
5
COIL, IGNITION ECH-Y16084078510
...
6
IGNITER ECH-Y16081078650
...
7
CLAMP ECH-Y16087078700
...
8
CLAMP ECH-Y16091078790
...
9
SCREW - 5x10 ECH-Y26022050102
...
10
BOLT - 6x8 - PLATED ECH-Y26476060142
...
11
BOLT - 6x30 ECH-Y26476060252
...
12
IGNITION SWITCH ASSY ECH-Y16061177250
...
13
U-NUT M8 ECH-Y26366080002
...
...
...
...
...
