Echo EG-2600 Electric Generator

Model: EG-2600

Save
 Part Not Listed?Part Not Listed?
product name

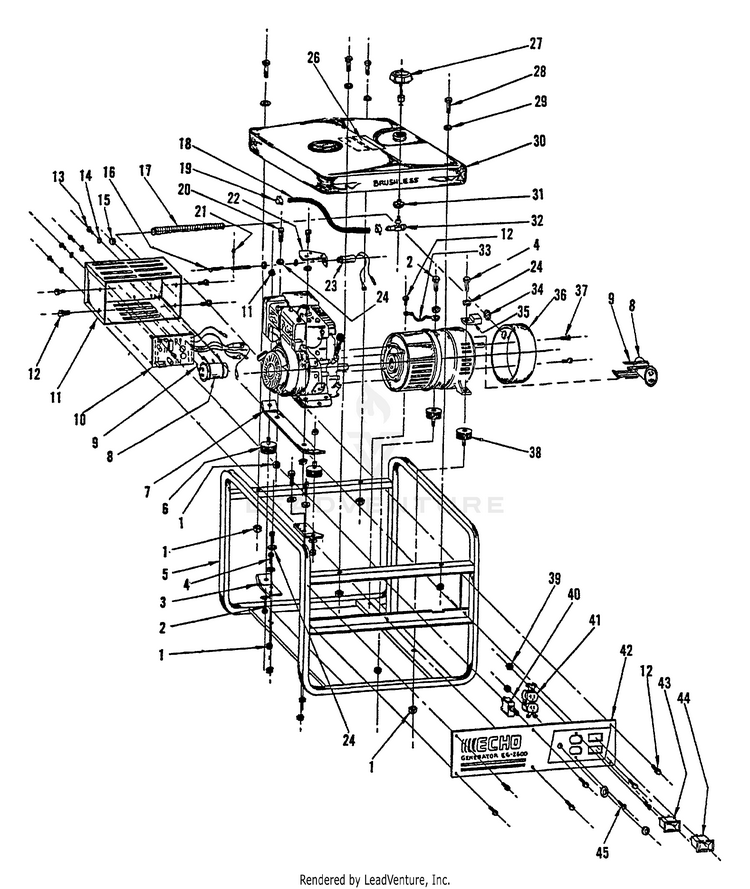

Electrical Panel, Idle Ctrl, Fuel Sys, Frame

...
...
1
LOCKNUT - 5/16-18 ECH-240016001
...
2
5/16-18x5/8 HHS ECH-240017019
...
3
BRACKET, FOCUS ECH-240041004
...
4
5/16-18x7/8 HHS ECH-240017063
...
5
FRAME ECH-240001200
...
6
ISOLATOR, VIBRATION ECH-240009001
...
7
RAIL, FOCUS ECH-240041006
...
8
CAPACITOR - 50UF 370V ECH-240420000
...
9
TIE, CABLE ECH-240020070
...
10
CIRCUIT, ECHO-MIZER ECH-248034010
...
11
BOX, CONTROL ECH-240028050
...
12
SCREW - 10-24 ECH-240017001
...
13
6-32x1/4 RHS ECH-240017060
...
14
WASHER, LOCK ECH-240015011
...
15
GROMMET ECH-240020022
...
16
SPRING, ECHO-MIZER ECH-240034115
...
17
CONDUIT PIPE ECH-240029000
...
18
LINE, FUEL - 24" ECH-240300250
...
19
CLAMP ECH-240024001
...
20
BOLT - 5/16-18x1-1/2" ECH-240017003
...
21
BRACKET, SOLENOID ECH-240034114
...
22
PIN, COTTER ECH-240017017
...
23
SOLENOID ASSY ECH-248034104
...
24
WASHER, LOCK 5x16 ECH-240015004
...
26
LABEL - SAFETY ECH-240021340
...
27
CAP, FUEL ECH-240020003
...
28
HHS 5/16-18x1.75 ECH-240017020
...
29
LOCKWASHER - 5/16" ECH-240015002
...
30
TANK, FUEL - 3.5 GALLON ECH-240022002
...
31
GROMMET REPLACE FUEL TANK ECH---
...
32
VALVE, FUEL TANK REPLACE FUEL TANK ECH---
...
33
LEAD - GROUND ECH-240011001
...
34
GROMMET ECH-240020094
...
35
LUG, GROUND - 1/0-14 CU/AL ECH-240010001
...
36
COVER, END ECH-240410006
...
37
SCREW - 10-24 - SLOT HEAD ECH-240410022
...
38
ISOLATOR, VIBRATION ECH-240009050
...
39
NUT - 8-32 - KEPS ECH-240016003
...
40
BREAKER, CIRCUIT - 15A/250V ECH-240013150
...
41
DUPLEX, 15A/125V ECH-240007150
...
42
PANEL, SILKSCREENED ECH-246026007
...
43
SWITCH, ECHO-MISER ECH-240027032
...
44
SWITCH, IGNITION ECH-240027031
...
45
8-32x3/8 RHS ECH-240017005

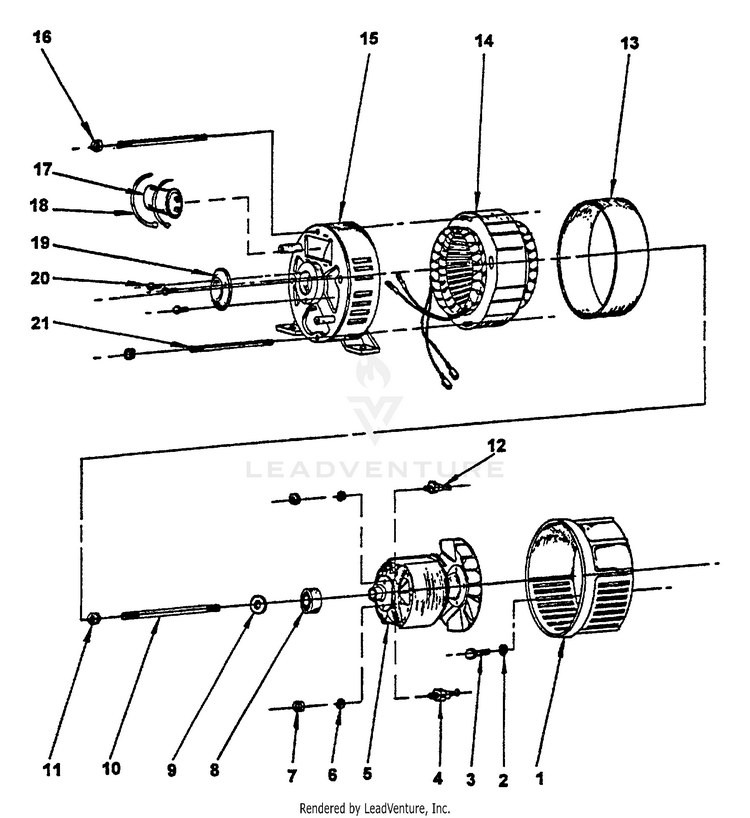

Generator

...
...
1
DRIVE END ADAPTOR CASTING ECH-240411008
...
2
WASHER, LOCK 5x16 ECH-240015004
...
3
SCREW - 5/16-24x1.00" - HEX HEAD CAP ECH-240410025
...
4
DIODE ECH---
...
5
ROTOR ASSY ECH-240440104
...
------------------
LOCKWASHER ECH---
...
------------------
NUT ECH---
...
8
BEARING ECH---
...
9
LOCKWASHER - 5/16" ECH-240015002
...
10
ROTOR THRU BOLT ECH-240411036
...
11
NUT - 5/16-24 - KEPS ECH-240461100
...
12
DIODE ECH---
...
13
BAND, COVER ECH-240410021
...
14
STATOR ASSY ECH-240440204
...
15
CASTING, BEARING ECH-240411001
...
16
NUT - 1/4-20 - KEPS ECH-240016005
...
17
CAPACITOR - 50UF 370V ECH-240420000
...
18
TIE, CABLE ECH-240020070
...
19
COVER, BEARING ECH-240410005
...
20
SCREW #10x24x1x2 ECH-240410001
...
21
BOLT, STATOR ECH-240411037
...
...
...
...
...
