Echo EG-2400 Electric Generator

Model: EG-2400

Save
 Part Not Listed?Part Not Listed?
product name

Electrical Panel

...
...
1
CONTROL BOX ASSY Includes ITEMS 1-31 ECH-103888000100
...
1
CONTROL BOX ASSY Included in Control Box Ass'y ECH-103888000101
...
2
CONTROL PANEL ASSY Included in Control Box Ass'y ECH-103888105000
...
3
CIRCUIT BREAKER Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-103514562508
...
4
SCREW Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-100043503060
...
5
LAMP, NEON Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-103207517308
...
6
AC RECEPTACLE - 125V-20A, GFCI Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-103904575008
...
7
NUT Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-100021704000
...
8
SWITCH ASSY Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-103444561508
...
9
SCREW Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-100043504100
...
10
BOLT, TERMINAL - RED Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-103634570108
...
11
BOLT, TERMINAL - BLACK Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-103634570008
...
12
CIRCUIT BREAKER - 10A DC Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-103524562008
...
13
SCREW Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-100043503060
...
14
AC VOLT METER Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-103914780001
...
15
NUT Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-100021703000
...
16
SCREW Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-103564990708
...
17
WASHER Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-103534990308
...
18
NUT Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-103534990208
...
19
WASHER, SPRING Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-103320005008
...
20
WINGNUT Included in Control Box Ass'y; Included in Control Panel Ass'y ECH-103534990108
...
21
CONDENSER Included in Control Box Ass'y ECH-103762200003
...
22
CONDENSER BRACKET ASSY Included in Control Box Ass'y ECH-103874500201
...
23
BOLT, FLANGE Included in Control Box Ass'y ECH-100110060010
...
24
BOLT Included in Control Box Ass'y ECH-103914900103
...
25
NUT Included in Control Box Ass'y ECH-100022706000
...
26
DIODE STACK ASS'Y Included in Control Box Ass'y ECH-103534580408
...
27
SCREW - TAPPING Included in Control Box Ass'y ECH-100150040070
...
28
IDLE CONTROL UNIT Included in Control Box Ass'y ECH-103883060308
...
29
SCREW Included in Control Box Ass'y ECH-100043504100
...
30
GROMMET Included in Control Box Ass'y ECH-103898900103
...
31
SCREW - TAPPING Included in Control Box Ass'y ECH-103534990408
...
32
BOLT ECH-100011406160
...
33
CORD BUSH ECH-103635600008
...
34
FILTER, FUEL ECH-100642002311
...
35
O-RING Included in Fuel Strainer Ass'y ECH-100642000330
...
36
FILTER Included in Fuel Strainer Ass'y ECH-100642000220
...
37
PACKING Included in Fuel Strainer Ass'y ECH-100642000230
...
38
CUP Included in Fuel Strainer Ass'y ECH-100642001910
...
39
BOLT, BANJO Included in Fuel Strainer Ass'y ECH-100642000240
...
40
FIBER PACKING Included in Fuel Strainer Ass'y ECH-100642000250
...
41
NUT, LOCK Included in Fuel Strainer Ass'y ECH-100642002410
...
42
CLAMP, HOSE ECH-100533090020
...
43
BOLT, BANJO ECH-100521060110
...
44
CLAMP, HOSE ECH-100561100030
...
45
RUBBER PIPE (4.5 DIA.x11 DIA.x160 MM) ECH-100851040000

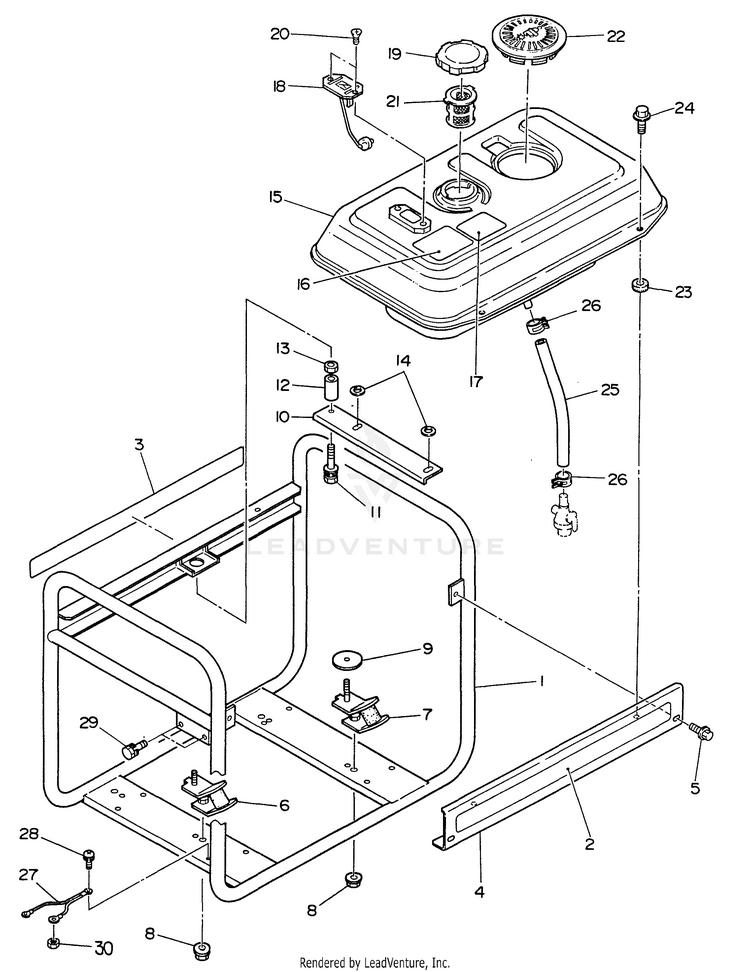

Fuel System, Frame

...
...
1
PIPE FRAME, COMPL. ECH-103887100001
...
2
LABEL - MODEL EG-2400 ECH-103889100103
...
3
LABEL - MODEL EG-2400 ECH-103889100203
...
4
SIDE PLATE ASSY ECH-103887210001
...
5
BOLT - FLANGE ECH-100110060080
...
6
MOUNT, RUBBER ECH-103525704118
...
7
MOUNT, RUBBER ECH-103525704218
...
8
NUT, FLANGE ECH-100023808000
...
9
WASHER ECH-100200080030
...
10
STOPPER PLATE ECH-103885441008
...
11
BOLT ECH-100011306350
...
12
SPACER ECH-103895439808
...
13
NUT ECH-100021706000
...
14
WASHER ECH-100031206000
...
15
TANK ASSY, FUEL Includes ITEMS 16-17 ECH-102276072401
...
16
LABEL - CAUTION - OPERATION ECH-103895915808
...
17
LABEL - DANGER ECH-103909900103
...
18
FUEL GAUGE, COMPL. ECH-100648000200
...
19
CAP ASSY ECH-100430430015
...
20
SCREW ECH-100145050040
...
21
FILTER, FUEL ECH-100641360010
...
22
PLUG COVER ECH-102276600103
...
23
RUBBER WASHER ECH-103525432708
...
24
BOLT, FLANGE ECH-100110060180
...
25
RUBBER PIPE (11.5x17.5x230 MM) ECH-100851110000
...
26
CLAMP, HOSE ECH-100561170010
...
27
LEAD - GROUND ECH-103883900101
...
28
SCREW ECH-103763910001
...
29
BOLT ECH-100011406160
...
30
NUT ECH-103914900203

Generator

...
...
1
STATOR ASSY ECH-103880130001
...
2
ROTOR ASSY Includes ITEM 3 ECH-103882100001
...
3
BEARING, BALL ECH-103535820808
...
4
BOLT ECH-103912510003
...
5
WASHER ECH-100031208000
...
6
LOCKWASHER ECH-100032008000
...
7
FRONT COVER ECH-103885410113
...
8
BOLT ECH-100011308200
...
9
REAR COVER ASSY ECH-103885400101
...
10
BOLT ECH-100011406250
...
11
RING, SUPPORT ECH-103885438103
...
12
BOLT ECH-100016506750
...
13
WASHER ECH-100031006000
...
14
LOCKWASHER ECH-100032006000
...
15
END COVER ECH-103885500113
...
16
BOLT, FLANGE ECH-100110060010
...
17
FRONT PROTECTOR ECH-103885510103
...
18
SCREW - TAPPING ECH-100152050010
...
19
LABEL - GENERATOR ECH---
...
20
BUSHING ECH-103912900013
...
21
NUT, FLANGE ECH-100023808000
...
22
CLAMP ECH-100566000170
...
...
...
...
...
