Echo EG-2300 S/N: 001001 - 003371 Electric Generator

Model: EG-2300 S/N: 001001 - 003371

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

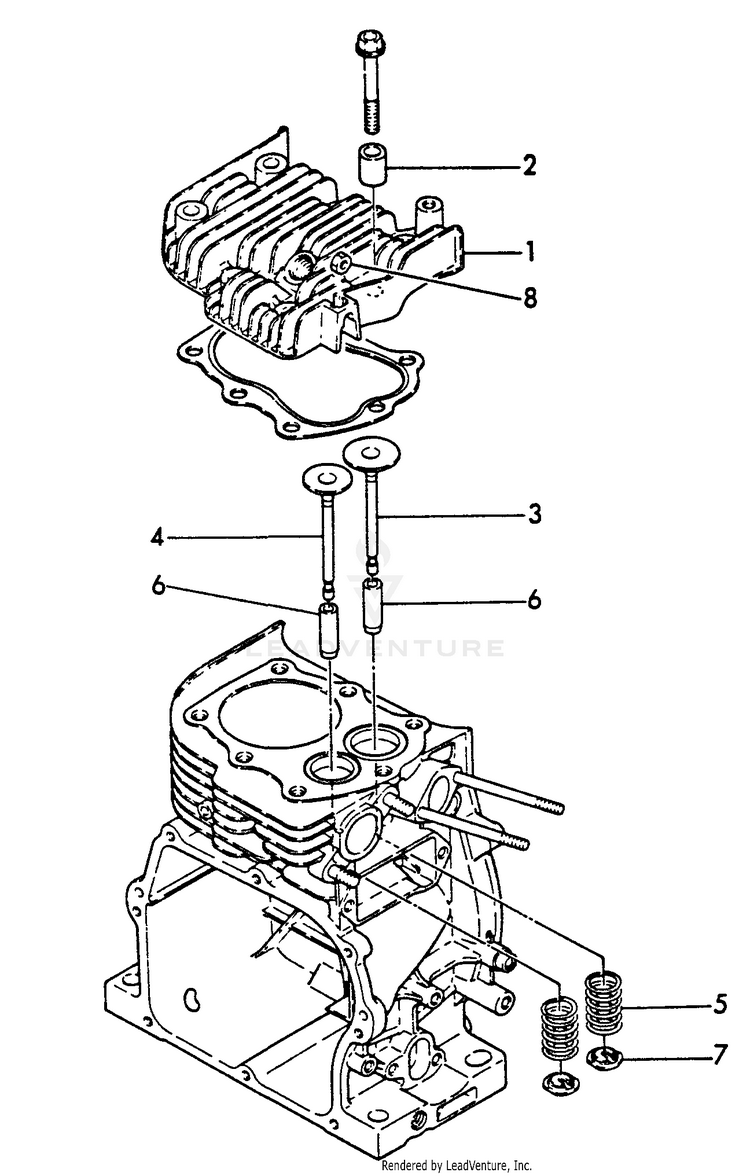

Cylinder Head

...
...
1
HEAD, CYLINDER ECH-Y16071011010
...
2
SPACER ECH-Y16071011050
...
3
VALVE, INTAKE ECH-Y16071011100
...
4
VALVE, EXHAUST ECH-Y16071011110
...
5
SPRING, VALVE ECH-Y16071011120
...
6
GUIDE, VALVE ECH-Y16061011160
...
7
RETAINER, SPRING ECH-Y16061011180
...
8
LOCKNUT - 6 - PLATED ECH-Y26756060002
...
...
...
...
...
