Echo EG-2300 S/N: 001001 - 003371 Electric Generator

Model: EG-2300 S/N: 001001 - 003371

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

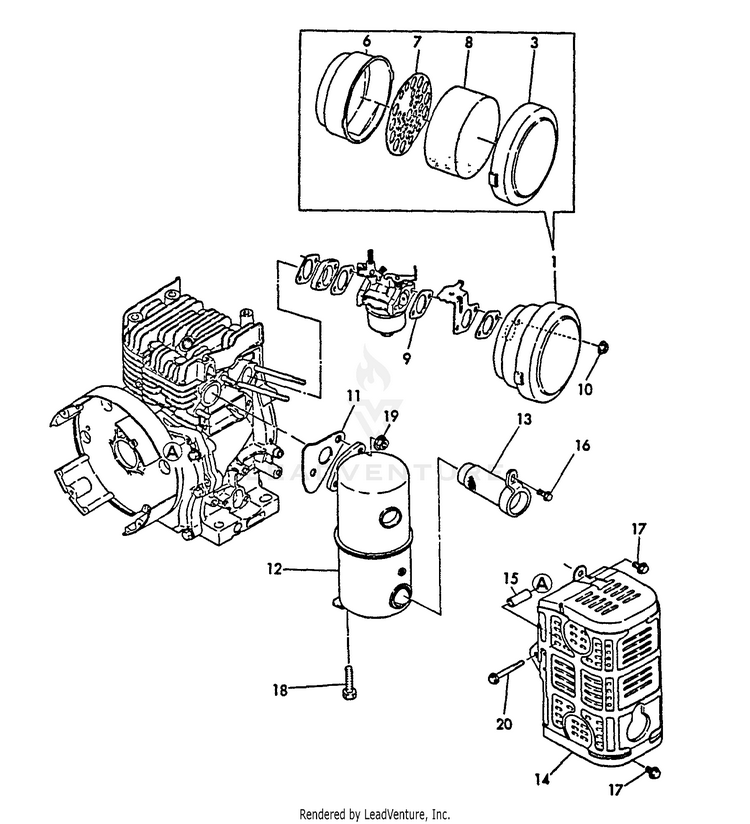

Intake, Exhaust, Air Cleaner

...
...
1
FILTER ASSY, AIR ECH-Y76071012560
...
3
COVER, AIR FILTER ECH-Y76071012540
...
6
CASE, AIR FILTER ECH-Y16071012540
...
7
PLATE, ELEMENT ECH-Y16071012550
...
8
FILTER, AIR ECH-Y16026012570
...
9
GASKET ECH-Y16051056150
...
10
U-NUT M6 ECH-Y26366060002
...
11
GASKET, EXHAUST ECH-Y16071013200
...
12
MUFFLER ECH-Y16077013550
...
13
SCREEN, SPARK ARRESTER ECH-Y16077013650
...
14
COVER, MUFFLER ECH-Y16077013810
...
15
SPACER ECH-Y16063045190
...
16
BOLT - 6x10 - PLATED ECH-Y26106060102
...
17
BOLT - 6x16 ECH-Y26106060162
...
18
BOLT - 8x30 - PLATED ECH-Y26106080302
...
19
U-NUT M8 ECH-Y26366080002
...
20
BOLT - 6x55 ECH-Y26476060552
...
...
...
...
...
