Echo EG-2300 S/N: 001001 - 003371 Electric Generator

Model: EG-2300 S/N: 001001 - 003371

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

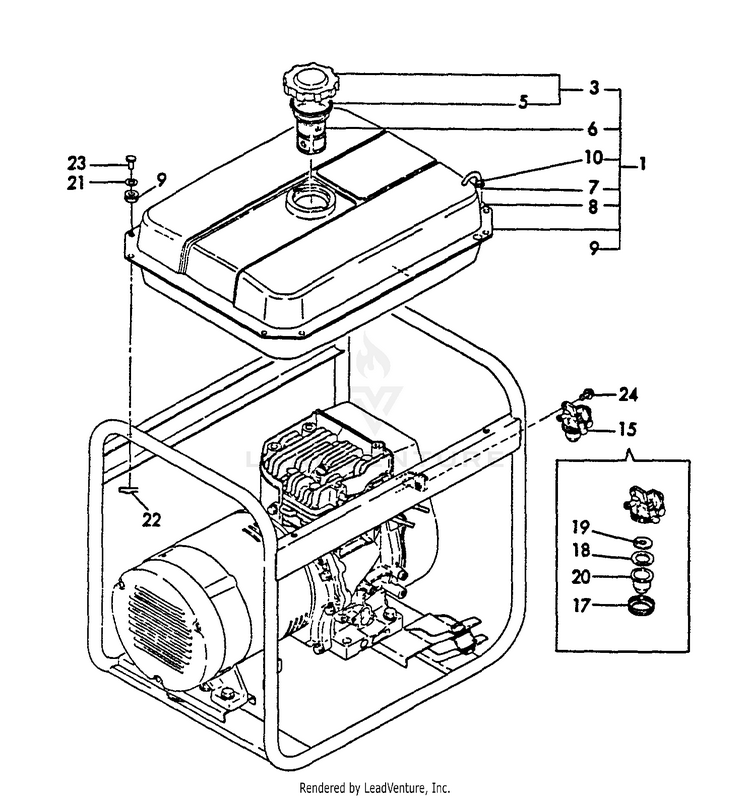

Fuel Tank

...
...
1
TANK ASSY, FUEL ECH-Y78372055730
...
3
CAP ASSY ECH-Y16071055060
...
5
GASKET ECH-Y16039355050
...
6
STRAINER, FUEL ECH-Y16071055100
...
7
PIPE, GAUGE ECH-Y16071055150
...
8
GROMMET ECH-Y18372055190
...
9
GROMMET ECH-Y18372055210
...
10
CLAMP, HOSE - 9 ECH-Y12472259050
...
15
COCK ASSY, FUEL ECH-Y16071055301
...
17
RETAINER ECH-Y16071055360
...
18
GASKET ECH-Y16071055370
...
19
FILTER, FUEL ECH-Y16071055380
...
20
BOWL, STRAINER ECH-Y16071055390
...
21
WASHER ECH-Y16012076940
...
22
PIN - 6 - SNAP ECH-Y22360060000
...
23
PIN 6x14 ECH-Y22487060140
...
24
BOLT - 6x8 - PLATED ECH-Y26106060082
...
...
...
...
...
