Echo EG-1500 S/N: 00000 - 03796 Electric Generator

Model: EG-1500 S/N: 00000 - 03796

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

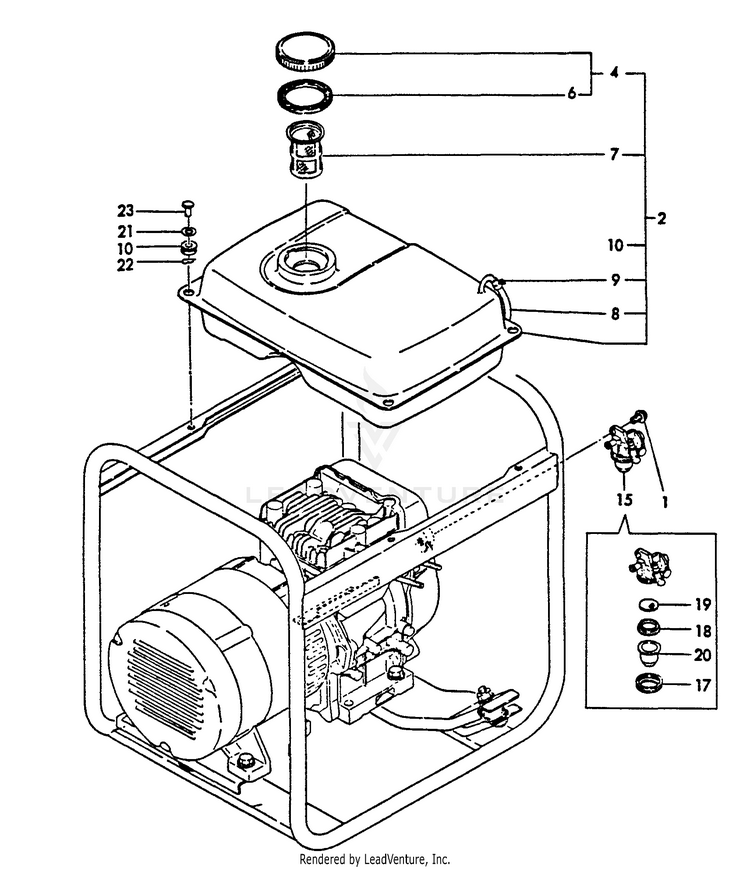

Fuel Tank

...
...
1
BOLT - 6x8 - PLATED ECH-Y26106060082
...
2
TANK ASSY, FUEL ECH-Y78362155730
...
4
CAP ASSY ECH-Y16071055060
...
6
GASKET ECH-Y16039355050
...
7
STRAINER, FUEL ECH-Y16071055100
...
8
PIPE, FUEL GAUGE ITEM IS NO LONGER AVAILABLE ECH-Y16072055150
...
9
CLAMP, HOSE - 9 ECH-Y12472259050
...
10
GROMMET ECH-Y18372055210
...
15
COCK ASSY, FUEL ECH-Y16071055301
...
17
RETAINER ECH-Y16071055360
...
18
GASKET ECH-Y16071055370
...
19
FILTER, FUEL ECH-Y16071055380
...
20
BOWL, STRAINER ECH-Y16071055390
...
21
WASHER ECH-Y16012076940
...
22
PIN - 6 - SNAP ECH-Y22360060000
...
23
PIN 6x14 ECH-Y22487060140
...
...
...
...
...
