Echo EG-1500 S/N: 00000 - 03796 Electric Generator

Model: EG-1500 S/N: 00000 - 03796

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

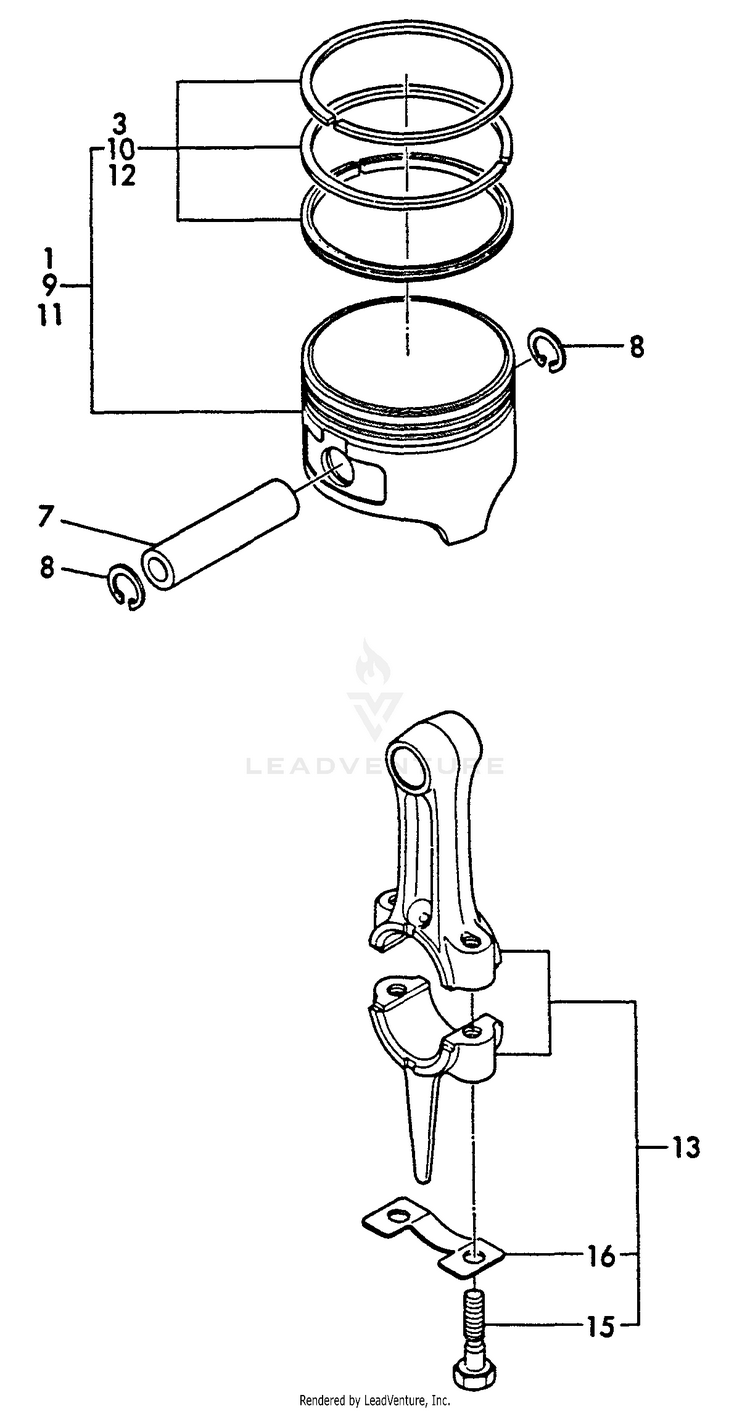

Piston And Connecting Rod

...
...
1
PISTON KIT ECH-Y16061122010
...
3
RING, PISTON ECH-Y76061122500
...
7
PIN, PISTON ECH-Y16061122300
...
8
RING, RETAINING - 13 ECH-Y22252000130
...
9
PISTON KIT ECH-Y16061122470
...
10
RING, PISTON ECH-Y76061122540
...
11
PISTON KIT ECH-Y16061122480
...
12
RING, PISTON ECH-Y76061122550
...
13
CONNECTING ROD ASSY ECH-Y76061023100
...
15
BOLT, ROD ECH-Y16061023200
...
16
WASHER ECH-Y16061023210
...
...
...
...
...
