Echo EG-1500 S/N: 00000 - 03796 Electric Generator

Model: EG-1500 S/N: 00000 - 03796

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

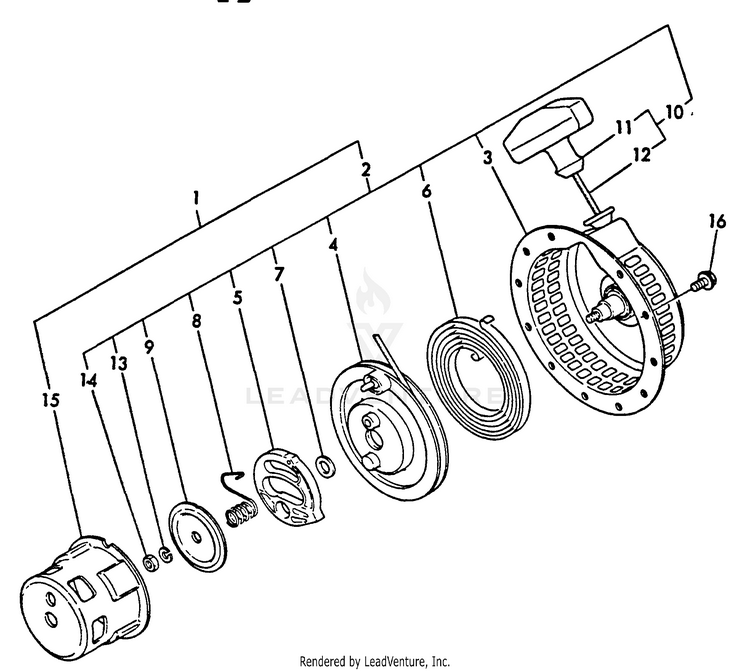

Starting Device

...
...
1
STARTER ASSY, RECOIL ECH-Y16064076050
...
2
STARTER ASSY, RECOIL ECH-Y16064076250
...
3
CASE, STARTER ECH-Y16064076510
...
4
REEL ECH-Y16061076520
...
5
RATCHET ECH-Y16061076530
...
6
SPRING, SPIRAL ECH-Y16071076540
...
7
WASHER ECH-Y16061076550
...
8
SPRING ECH-Y16064076560
...
9
PLATE, FRICTION ECH-Y16061076580
...
10
STARTER ROPE ASSY ECH-Y16026076610
...
11
GRIP, STARTER ECH-Y16026076620
...
12
ROPE, STARTER ECH-Y16026076630
...
13
LOCKWASHER - 6 ECH-Y22217060000
...
14
NUT - 6 ECH-Y26717060002
...
15
PULLEY, STARTER ECH-Y16061076590
...
16
BOLT - 6x12 - PLATED ECH-Y26106060122
...
...
...
...
...
