Echo EG-1200 Electric Generator

Model: EG-1200

Save
 Part Not Listed?Part Not Listed?
product name

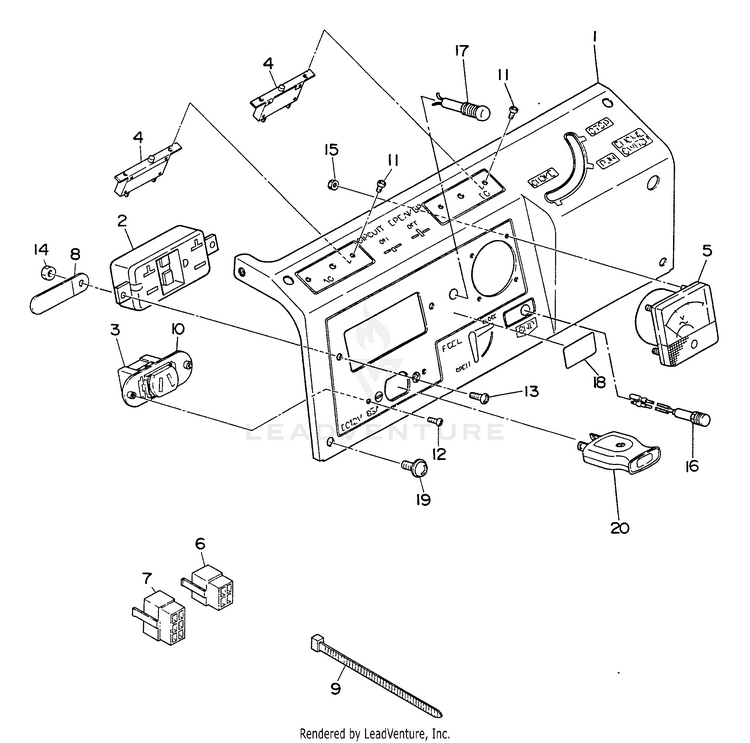

Electrical Panel

...
...
1
CONTROL PANEL ASSY ECH-103504111901
...
2
AC RECEPTACLE - 125V-20A, GFCI ECH-103904575008
...
3
DC RECEPTACLE - 250V-10A ECH-103504060208
...
4
CIRCUIT BREAKER - 10A DC ECH-103524562008
...
5
AC VOLT METER ECH-103914780001
...
6
CONNECTOR (4P) ECH-103535430108
...
7
CONNECTOR (6P) ECH-103535430008
...
8
CLAMP ECH-103502105308
...
9
WIRE BAND ECH-100563000020
...
10
DC RECEPTACLE BASE ECH-103504060308
...
11
SCREW ECH-100043503060
...
12
SCREW ECH-100043503080
...
13
SCREW ECH-100043504100
...
14
NUT ECH-100021704000
...
15
NUT ECH-100021703000
...
16
LED LAMP ASS'Y ECH-102277700200
...
17
LAMP, NEON ECH-103207517308
...
18
LABEL - HZ-V ECH-103509510803
...
19
SCREW ECH-100131050020
...
20
DC PLUG ECH-103589500303

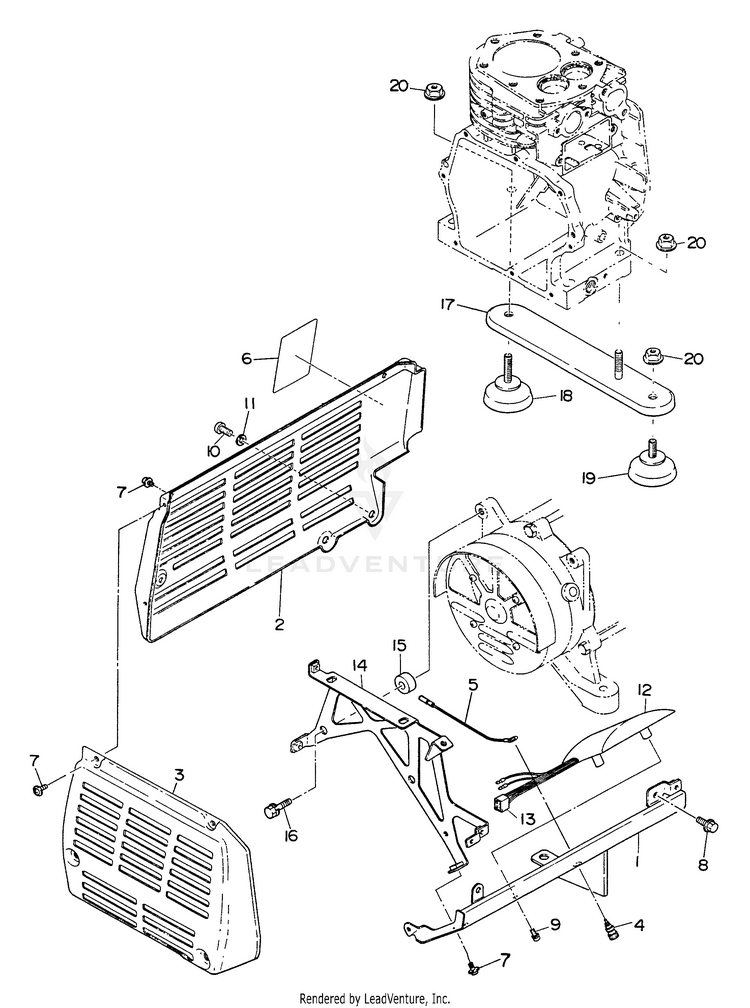

External Covers

...
...
1
FRONT COVER ASSY ECH-103505010501
...
2
REAR COVER ASSY ECH-103505060601
...
3
SIDE COVER ECH-103505160601
...
4
BOLT, TERMINAL - BLACK ECH-103634570008
...
5
LEAD - GROUND ECH-103505400101
...
6
LABEL - SPECIFICATION ECH-103509220103
...
7
SCREW ECH-100131050020
...
8
SCREW ECH-100043405100
...
9
SCREW ECH-100043504080
...
10
SCREW - PAN HEAD ECH-100043108100
...
11
WASHER ECH-100031108000
...
12
AVR, COMPL. Includes ITEM 13 ECH-103502400201
...
13
CONNECTOR (4P) ECH-103534720108
...
14
MOUNT ASSY ECH-103503510111
...
15
SPACER ECH-100230080101
...
16
BOLT ECH-100011308300
...
17
MOUNT ASSY ECH-103503070121
...
18
MOUNT ASSY ECH-103503010301
...
19
MOUNT ASSY ECH-103503010401
...
20
NUT, FLANGE ECH-100023808000

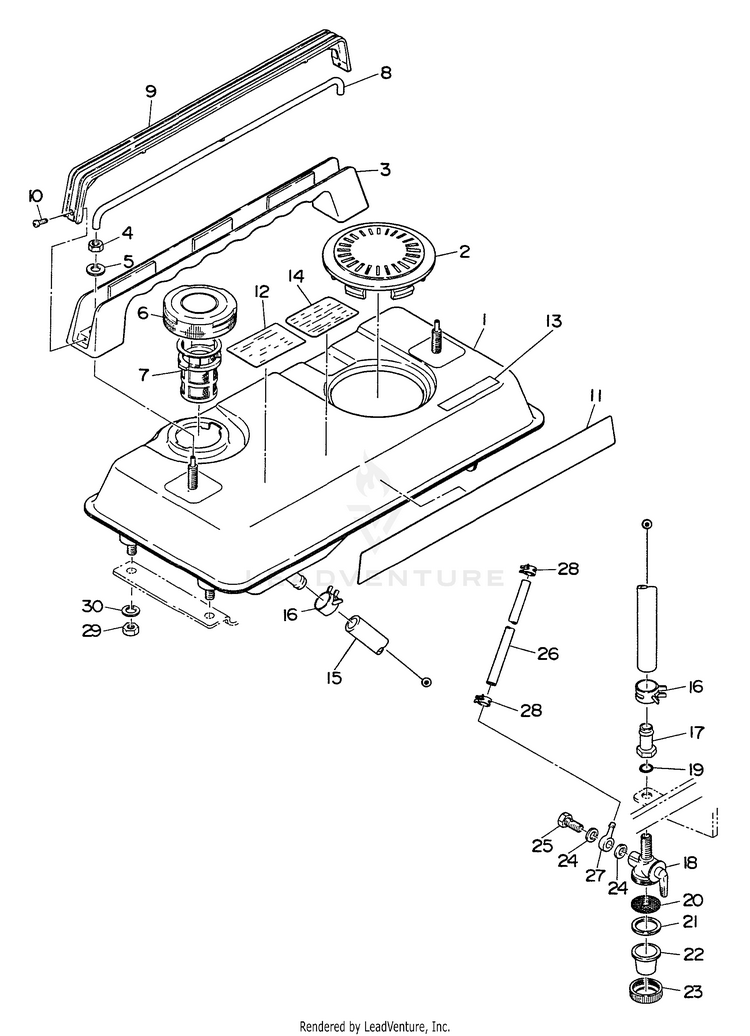

Fuel Tank, Handles

...
...
1
TANK ASSY, FUEL ECH-103506010371
...
2
PLUG COVER ECH-102276600103
...
3
HANDLE ECH-103506520101
...
4
NUT ECH-100021808000
...
5
LOCKWASHER ECH-100032008000
...
6
CAP ASSY ECH-100430430041
...
7
FILTER, FUEL ECH-100641360020
...
8
PIPE, BREATHER ECH-103506550103
...
9
HANDLE COVER ECH-103506540113
...
10
SCREW - PAN HEAD ECH-100043103100
...
11
LABEL - TRADE MARK ECH-103509171603
...
12
LABEL - CAUTION ECH-100732002630
...
13
LABEL - SPARK ARRESTER ECH-103589530403
...
14
LABEL - DANGER ECH-103909900103
...
15
RUBBER PIPE (11.5x17.5x230 MM) ECH-100851110000
...
16
CLAMP, HOSE ECH-100561170010
...
17
CLAMP, HOSE ECH-100533090020
...
18
FILTER, FUEL INCLUDES ITEMS 19 THRU 25 ECH-100642004902
...
19
O-RING ECH-100642000330
...
20
FILTER ECH-100642000220
...
21
PACKING ECH-100642000230
...
22
CUP ECH-100642001910
...
23
NUT, LOCK ECH-100642002410
...
24
FIBER PACKING ECH-100642000250
...
25
BOLT, BANJO ECH-100642000240
...
26
RUBBER PIPE (6x12x160 MM) ECH-100851060000
...
27
BOLT, BANJO ECH-100521070042
...
28
CLAMP, HOSE ECH-100561110020
...
29
NUT ECH-100021808000
...
30
LOCKWASHER ECH-100032008000

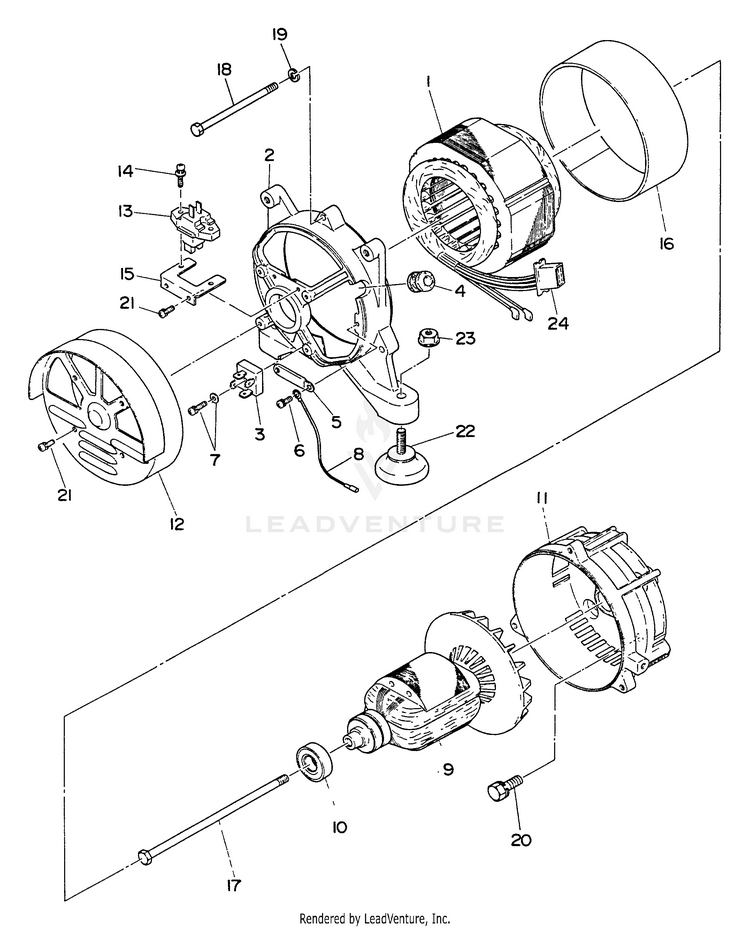

GENERATOR

...
...
1
STATOR ASSY ECH-103502500401
...
2
BRACKET, REAR ECH-103502105108
...
3
DIODE STACK ASS'Y ECH-103534580408
...
4
GROMMET ECH-103502105508
...
5
CLAMP ECH-103502105308
...
6
SCREW ECH-100131050020
...
7
SCREW ECH-103502105708
...
8
EARTH WIRE, COMPL ECH-103502600101
...
9
ROTOR ASSY Includes ITEM 10 ECH-103502101508
...
10
BEARING, BALL ECH-103605820108
...
11
BRACKET, FRONT ECH-103502105608
...
12
END COVER ECH-103502105408
...
13
HOLDER, BRUSH ECH-103655500208
...
14
SCREW ECH-100043605200
...
15
BRUSH HOLDER BASE ECH-103502105208
...
16
STATOR COVER ECH-103502105008
...
17
BOLT ECH-100100080330
...
18
BOLT ECH-100130060090
...
19
LOCKWASHER ECH-100032006000
...
20
BOLT ECH-100011308180
...
21
SCREW ECH-100131050020
...
22
MOUNT ASSY ECH-103503010301
...
23
NUT, FLANGE ECH-100023808000
...
24
LABEL - GENERATOR ECH---
...
...
...
...
...
