Echo EG-10000 S/N: EG-190628- A0000001 - 190628- A9999999 Generator

Model: EG-10000 S/N:EG-190628-A0000001--190628- A9*

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

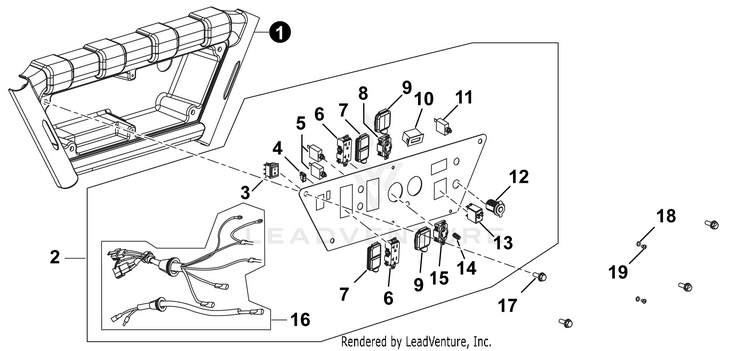

Control Panel Assembly

...
...
1
SEAT, PANEL ECH-YH479000450
...
2
PANEL, CONTROL Includes Items 3-16 ECH-YH479000440
...
3
SWITCH SUBASSEMBLY ECH-YH321000050
...
4
SWITCH SUBASSEMBLY ECH-YH321000060
...
5
BREAKER, AC ECH-YH318000020
...
6
SOCKET, 120V POWER ECH-YH304000070
...
7
COVER, SOCKET ECH-YH479000350
...
8
SOCKET, 240V TWISTLOCK ECH-YH304000090
...
9
COVER, TWISTLOCK ECH-YH479000340
...
10
DISPLAY, DIGITAL ECH-YH310000020
...
11
PROTECTOR, OVERCURRENT ECH-YH318000040
...
12
SOCKET SUBASSEMBLY, D.C ECH-YH304000100
...
13
BREAKER, DOUBLE-POLE ECH-YH318000030
...
14
TERMINAL, GROUND BOLT ECH-YH304000080
...
15
SOCKET, 120V TWISTLOCK ECH-YH304000060
...
16
HARNESS SET, WIRING ECH-YH601000020
...
17
BOLT ECH-YH435000220
...
18
WASHER, FLAT ECH-YH451000010
...
19
BOLT ECH-YH435000230
...
...
...
...
...
