Echo EG-10000 S/N: EG-190628- A0000001 - 190628- A9999999 Generator

Model: EG-10000 S/N:EG-190628-A0000001--190628- A9*

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

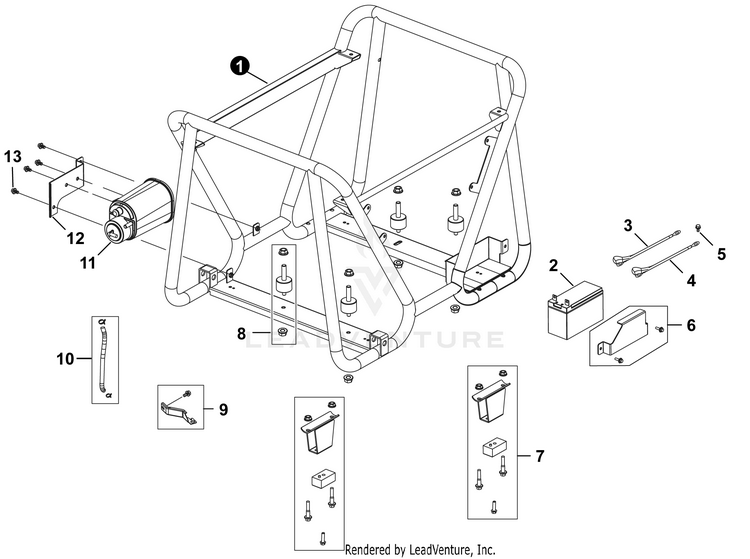

Frame

...
...
1
FRAME ASSY, ENGINE ECH-YH479000420
...
2
BATTERY ECH-YH300000000
...
3
WIRE, ANODE ECH-YH301000030
...
4
WIRE, CATHODE ECH-YH301000020
...
5
BOLT ECH-YH435000210
...
6
CLAMP, BATTERY ECH-YH479000430
...
7
MOUNT, ENGINE ECH-YH468000450
...
8
CUSHION, ENGINE FRAME ECH-YH468000440
...
9
SUPPORT, ATR CLEANER ECH-YH466000090
...
10
HOSE, AIR CLEANER ECH-YH467000200
...
11
CANNISTER, VAPOR ECH-YH481000010
...
12
PLATE, VAPOR CANNISTER ECH-YH466000080
...
13
BOLT ECH-YH435000210
...
...
...
...
...
