Echo EDR-260 S/N: E01807001001 - E01807999999 Engine Drill Reversable

Model: EDR-260 S/N: E01807001001 - E01807999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

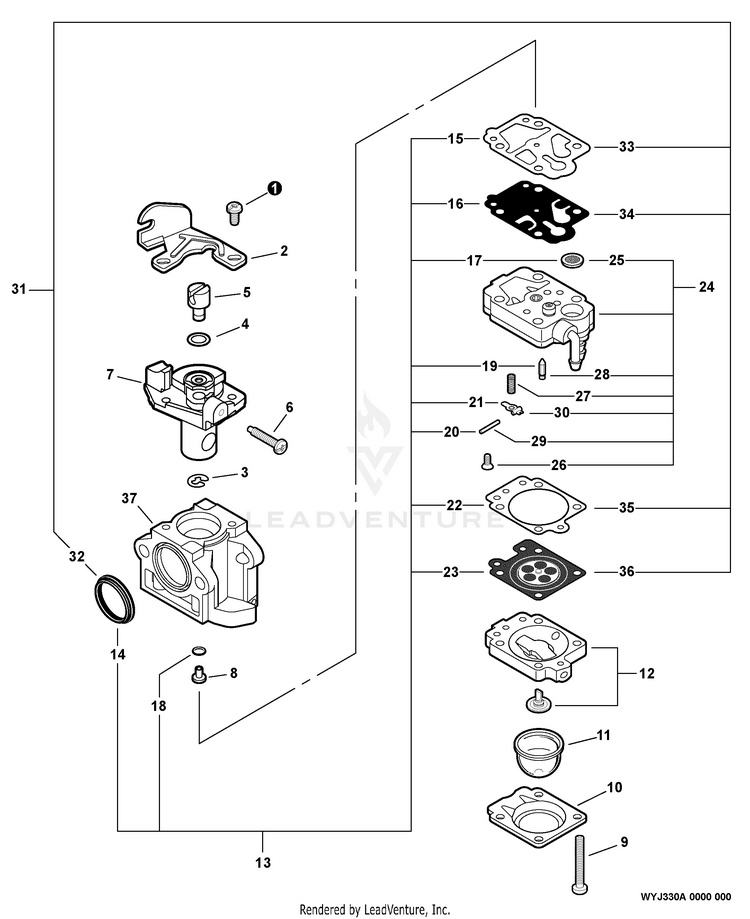

Carburetor -- WYJ-330A

...
...
xx
CARBURETOR - WYJ-330A ECH-A021000672
...
1
SCREW ECH-12311440630
...
2
BRACKET, THROTTLE CABLE ECH-P003000180
...
3
E-RING ECH-12317307930
...
4
WASHER ECH-12314954230
...
5
SWIVEL ECH-12317245130
...
6
SCREW ECH-12313440030
...
7
THROTTLE VALVE ASSY NOT AVAILABLE SEPARATELY ECH---
...
8
JET, MAIN ECH-P003001050
...
9
SCREW ECH-12311005560
...
10
RETAINER, PURGE BULB ECH-12314205560
...
11
BULB, PURGE ECH-12318140630
...
12
BODY ASSY, PURGE ECH-12318005560
...
13
REPAIR KIT, CARBURETOR Includes ITEMS 14-23 ECH-P003000190
...
14
SEAL ECH---
...
15
GASKET, PUMP ECH---
...
16
DIAPHRAGM, PUMP ECH---
...
17
STRAINER ECH---
...
18
O-RING ECH---
...
19
VALVE, INLET NEEDLE ECH---
...
20
PIN, METERING LEVER ECH---
...
21
LEVER, METERING ECH---
...
22
GASKET, METERING ECH---
...
23
DIAPHRAGM, METERING ECH---
...
24
BODY ASSY, PUMP Includes ITEMS 25-30 ECH-P003000870
...
25
STRAINER ECH---
...
26
SCREW ECH-12313905560
...
27
SPRING, METERING LEVER ECH---
...
28
VALVE, INLET NEEDLE ECH---
...
29
PIN, METERING LEVER ECH---
...
30
LEVER, METERING ECH---
...
31
GASKET / DIAPHRAGM KIT Includes ITEMS 32-36 ECH-P003000200
...
32
SEAL ECH---
...
33
GASKET, PUMP ECH---
...
34
DIAPHRAGM, PUMP ECH---
...
35
GASKET, METERING ECH---
...
36
DIAPHRAGM, METERING ECH---
...
37
BODY, CARBURETOR NOT AVAILABLE SEPARATELY ECH---
...
...
...
...
...
