Echo EDR-260 S/N: E01807001001 - E01807999999 Engine Drill Reversable

Model: EDR-260 S/N: E01807001001 - E01807999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

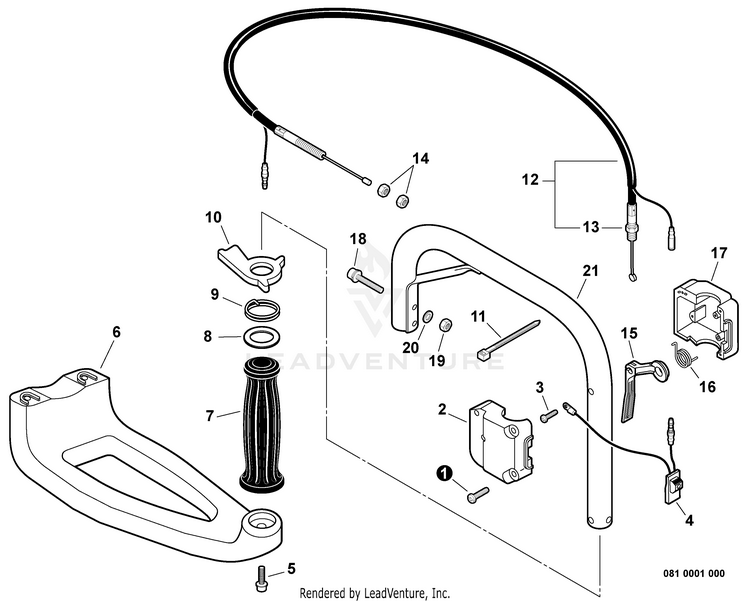

Handles, Throttle Control

...
...
1
SCREW 4x25 ECH-90024504025
...
2
BRACKET, LEFT CONTROL ECH-17805201261
...
3
SCREW 4x30 ECH-90024504030
...
4
SWITCH, ON-OFF ECH-16340004460
...
5
BOLT 5x16 ECH-90010605016
...
6
STAND ECH-A175000021
...
7
GRIP, HANDLE ECH-35131527931
...
8
SPACER ECH-17807002061
...
9
SPRING, THROTTLE LOCKOUT ECH-17801302060
...
10
LOCKOUT, THROTTLE ECH-17801202061
...
11
TIE, CABLE ECH-17812156030
...
12
CABLE ASSY, CONTROL Includes ITEM 14 ECH-V043000010
...
13
NUT M6 ECH-90050200006
...
14
NUT M6 ECH-90050200006
...
15
TRIGGER, THROTTLE ECH-C450000150
...
16
SPRING, THROTTLE RETURN ECH-17804301260
...
17
BRACKET, RIGHT CONTROL ECH-17802401261
...
18
BOLT M5x35 ECH-90016205035
...
19
NUT, LOCK M5 ECH-90056000005
...
20
WASHER 5.5x12x0.8 ECH-90060300005
...
21

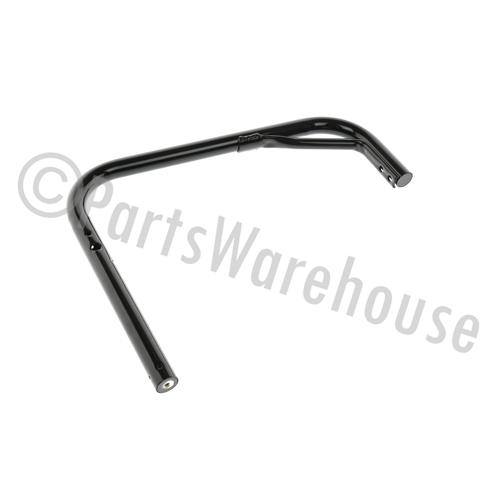

HANDLE, REAR ECH-C410000160
...
...
...
...
...
