Echo EDR-260 S/N: E01705001001 - E01705999999 Engine Drill Reversable

Model: EDR-260 S/N: E01705001001 - E01705999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

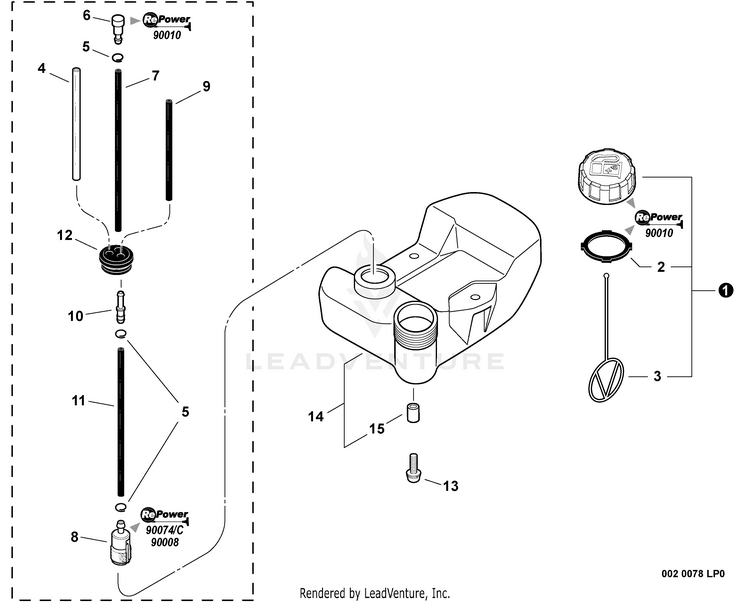

Fuel System S/N: E01705008967 - E01705999999

...
...
1
ASSY, FUEL CAP, ORANGE Includes ITEM 2-3 Included In RePower KIT ECH-P100014810
...
2
GASKET, FUEL CAP Included In RePower KIT ECH-V107000230
...
3
CONNECTOR, CAP L= 100 MM ECH-13105156030
...
4
PIPE, FUEL 3x6x80 YELLOW RePower BULK OPTION: 90017 ECH-V471006060
...
5
CLIP ECH-V491001230
...
6
VENT ASSY Included In RePower KIT ECH-A356000031
...
7
PIPE 3x6x115 BLACK RePower BULK OPTION: 90015 ECH-V471000111
...
8
FILTER, FUEL ECH-A369000460
...
9
PIPE, FUEL 3x5.5x67 BLACK RePower BULK OPTION: N/A ECH-V471005600
...
10
CONNECTOR, PIPE 5x3.5 ECH-V186000520
...
11
PIPE, FUEL 3x6x110 RePower BULK OPTION: 90015 ECH-13201056031
...
12
GROMMET, FUEL ECH-13211555931
...
13
SCREW 5x16 ECH-90023905016
...
14
TANK ASSY, FUEL Includes ITEM 15 ECH-13100555932
...
15
SPACER 6.2x7.8x6 ECH-13104528230
...
16
TUNE-UP KIT - YOUCAN™ CANADA MODELS ECH-90152Y
...
16
TUNE-UP KIT - YOUCAN™ ECH-90152Y
...
17
TUNE-UP KIT - YOUCAN™ ECH-90152Y
...
18
CAP/VENT KIT - REPOWER ECH-90248
...
...
...
...
...
