Echo EDR-210 S/N: E52313001001 - E52313999999 Engine Drill Reversable

Model: EDR-210 S/N: E52313001001 - E52313999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

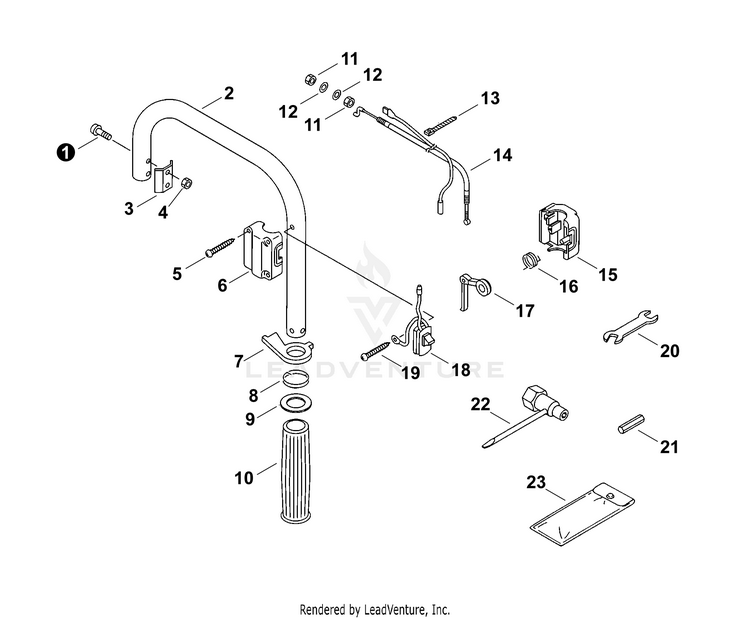

Handle, Throttle Control, Tools

...
...
1
BOLT M5x35 ECH-90016205035
...
2
HANDLE ECH-35130520960
...
3
PLATE ECH-35164105560
...
4
NUT, LOCK M5 ECH-90056000005
...
5
SCREW 4x25 ECH-90024504025
...
6
BRACKET, LEFT CONTROL ECH-17805201261
...
7
LOCKOUT, THROTTLE ECH-17801202061
...
8
SPRING, THROTTLE LOCKOUT ECH-17801302060
...
9
SPACER ECH-17807002061
...
10
GRIP, HANDLE ECH-35131527931
...
11
NUT M6 ECH-90050200006
...
12
WASHER 6.5x11.5x0.8 ECH-90060000006
...
13
TIE, CABLE ECH-17812156030
...
14
CABLE ASSY, THROTTLE ECH-17810009061
...
15
BRACKET, RIGHT CONTROL ECH-17802401261
...
16
SPRING, THROTTLE RETURN ECH-17804301260
...
17
CONTROL, THROTTLE ECH-17801007660
...
18
SWITCH, ON-OFF ECH-16340004460
...
19
SCREW 4x30 ECH-90024504030
...
20
SPANNER 17x19 ECH-89512220960
...
21
WRENCH, HEX, STEEL ECH-89541220961
...
22
T-WRENCH 10x19 MM ECH-89541039132
...
23
BAG, TOOL ECH-X698000170
...
...
...
...
...
