Echo EDR-210 S/N: E52313001001 - E52313999999 Engine Drill Reversable

Model: EDR-210 S/N: E52313001001 - E52313999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

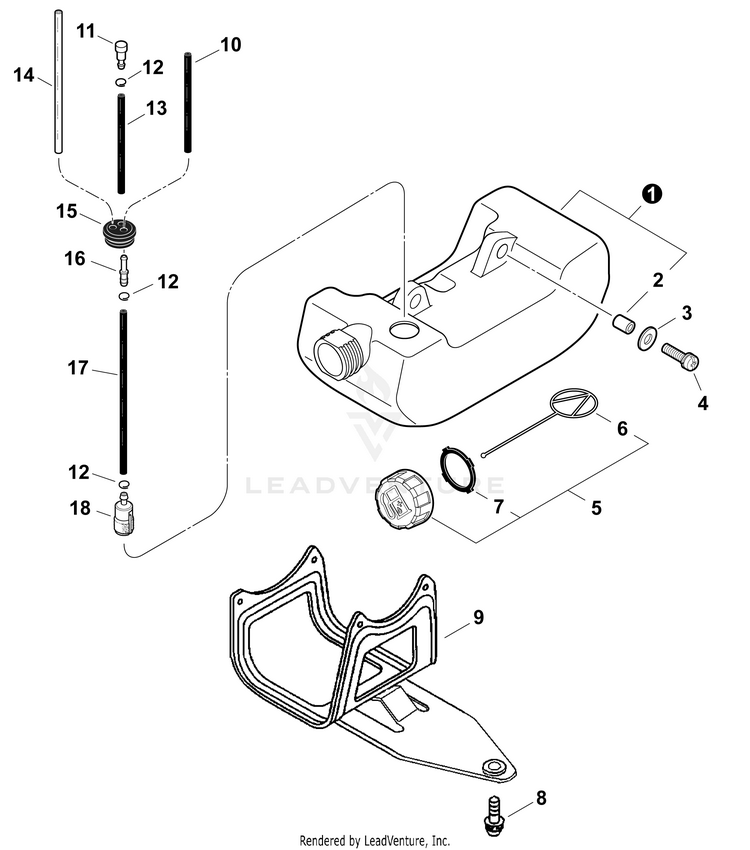

Fuel System

...
...
1
TANK, FUEL Includes Item 2 ECH-A350002080
...
2
SPACER 6.2x7.8x6 ECH-13104528230
...
3
WASHER 5.5x12x0.8 ECH-90060300005
...
4
SCREW 5x16 ECH-90024305016
...
5
FUEL CAP ASSY Includes Items 6-7 ECH-P100006620
...
6
CONNECTOR, CAP L= 100 MM ECH-13105156030
...
7
GASKET, FUEL CAP ECH-V107000150
...
8
SCREW 5x16 ECH-90024205016
...
9
STAND ECH-A175000000
...
10
PIPE, FUEL 3x5.5x67 BLACK ECH-V471005600
...
11
VENT ASSY ECH-13130056431
...
12
CLIP 6 ECH-V490001240
...
13
PIPE, VENT ECH-13131205560
...
14
PIPE, FUEL 3x6x80 YELLOW ECH-V471006060
...
15
GROMMET, FUEL 5 ECH-13211546730
...
16
CONNECTOR, PIPE 5x3.5 ECH-V186000520
...
17
PIPE 3x5x110 ECH-13201052830
...
18
FILTER, FUEL ECH-A369000480
...
...
...
...
...
