Echo EDR-210 S/N: E52313001001 - E52313999999 Engine Drill Reversable

Model: EDR-210 S/N: E52313001001 - E52313999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

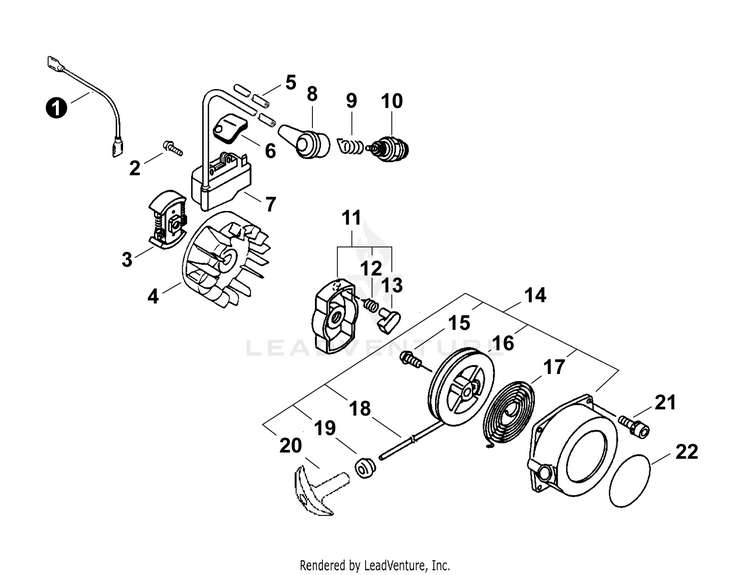

Starter, Ignition

...
...
1
LEAD - GROUND ECH-V485000290
...
2
BOLT 4x20 ECH-90016204020
...
3
CLUTCH ECH-17500052131
...
4
FLYWHEEL ECH-A409000160
...
5
TUBE, INSULATOR ECH-15611054930
...
6
GROMMET ECH-15011242030
...
7
COIL, IGNITION ECH-A411000131
...
8
CAP, SPARK PLUG ECH-15901201620
...
9
TERMINAL, SPARK PLUG ECH-15901103432
...
10
SPARK PLUG - BPM8Y ECH-15901019830
...
11
PAWL ASSY, STARTER Includes Items 12-13 ECH-17720212220
...
12
SPRING, RETURN ECH-17723412220
...
13
PAWL, STARTER - BLACK ECH-17721844330
...
14
STARTER ASSY, RECOIL Includes Items 15-20 ECH-17720042033
...
15
GRIP, STARTER ECH-17722806530
...
16
REEL, ROPE ECH-17721544430
...
17
SPRING, RECOIL ECH-P022019680
...
18
ROPE, STARTER ECH-17722644330
...
19
GUIDE, ROPE ECH-17722742030
...
20
GRIP, STARTER ECH-17722844330
...
21
BOLT 4x16 ECH-V202000830
...
22
LABEL - STARTER - ECHO ECH-X502000330
...
...
...
...
...
