Echo EDR-210 S/N: E52313001001 - E52313999999 Engine Drill Reversable

Model: EDR-210 S/N: E52313001001 - E52313999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

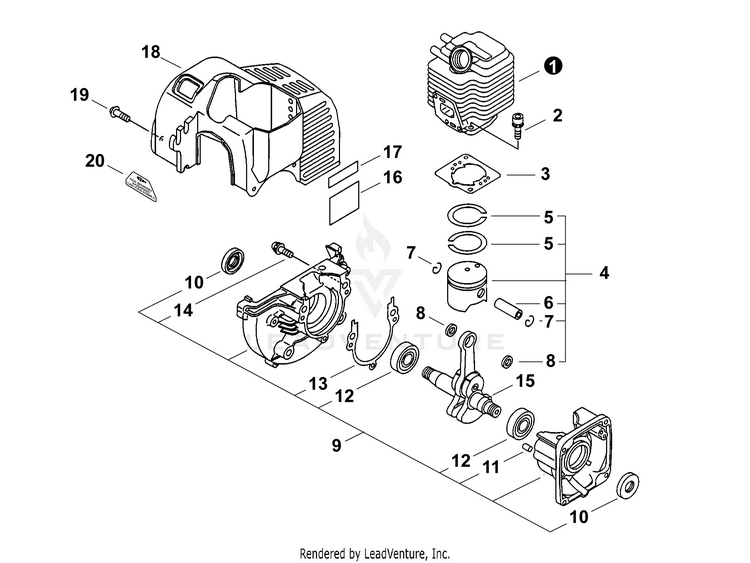

Engine, Cylinder Cover

...
...
1
CYLINDER ECH-A130000430
...
2
BOLT 5x22 ECH-90016205022
...
3
GASKET, CYLINDER ECH-V100000080
...
4
PISTON KIT Includes Items 5-8 ECH-P021001102
...
5
RING, PISTON ECH-A101000000
...
6
PIN, PISTON 8 ECH-10001311520
...
7
RING, SNAP ECH-10001504630
...
8
WASHER, THRUST ECH-10001411520
...
9
CRANKCASE KIT Includes Items 10-14 ECH-10020452133
...
10
SEAL, OIL 12 ECH-10021242031
...
11
PIN, LOCATING 4x8 ECH-90033040080
...
12
BEARING, BALL 6201 ECH-9403536201
...
13
GASKET, CRANKCASE ECH-10024242030
...
14
BOLT 5x28 ECH-90016205028
...
15
CRANKSHAFT ASSY ECH-A011001410
...
16
LABEL - CAUTION ECH-X505002570
...
17
LABEL - MODEL ECH-X503009430
...
18
COVER, CYLINDER ECH-10151424360
...
19
SCREW 4x12 ECH-90024204012
...
20
LABEL - SPARK PLUG - BPMR8Y ECH-X532004970
...
...
...
...
...
