Echo EDR-210 S/N: E52212001001 - E52212999999 Engine Drill Reversable

Model: EDR-210 S/N: E52212001001 - E52212999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

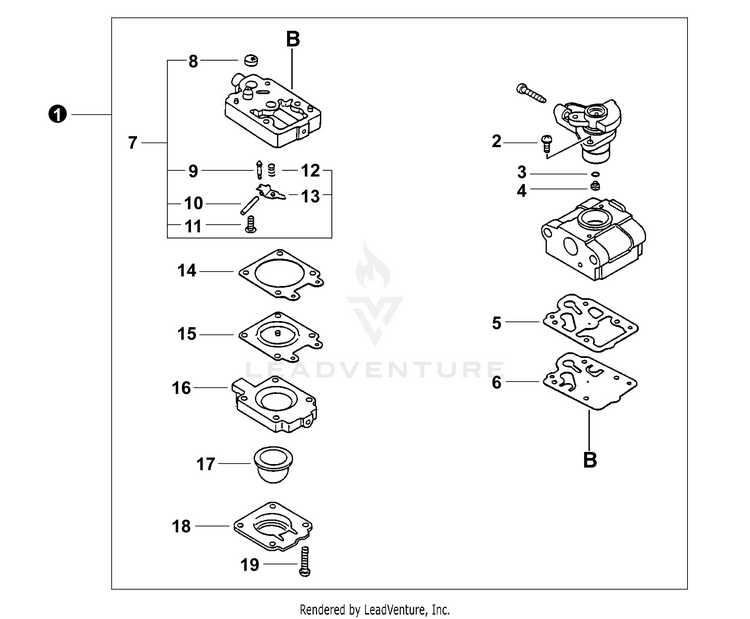

Carburetor

...
...
1
CARBURETOR - WYL-180A Includes<BR/> Items 2-19 ECH-A021000541
...
2
SCREW, THROTTLE COLLAR ECH-12311444330
...
3
O-RING ECH-12318305960
...
4
JET, MAIN ECH-P003000470
...
5
GASKET, FUEL PUMP ECH-12312540630
...
6
DIAPHRAGM, FUEL PUMP ECH-12311240630
...
7
BODY ASSY, PUMP Includes Items 8-13 ECH-12317905560
...
8
SCREEN, FUEL INLET ECH-12312610631
...
9
VALVE, INLET NEEDLE ECH-12313719830
...
10
PIN, METERING LEVER ECH-12313803930
...
11
SCREW ECH-12313905560
...
12
SPRING, METERING LEVER ECH-12312205560
...
13
LEVER, METERING ECH-12312338330
...
14
GASKET, METERING DIAPHRAGM ECH-12314005560
...
15
DIAPHRAGM, METERING ECH-P003000090
...
16
BODY ASSY, PURGE ECH-12318005560
...
17
BULB, PURGE ECH-12318140630
...
18
RETAINER, PURGE BULB ECH-12314205560
...
19
SCREW ECH-12311005560
...
...
...
...
...
