Echo ED-200 S/N: 05001001 - 05999999 Engine Drill

Model: ED-200 S/N: 05001001 - 05999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

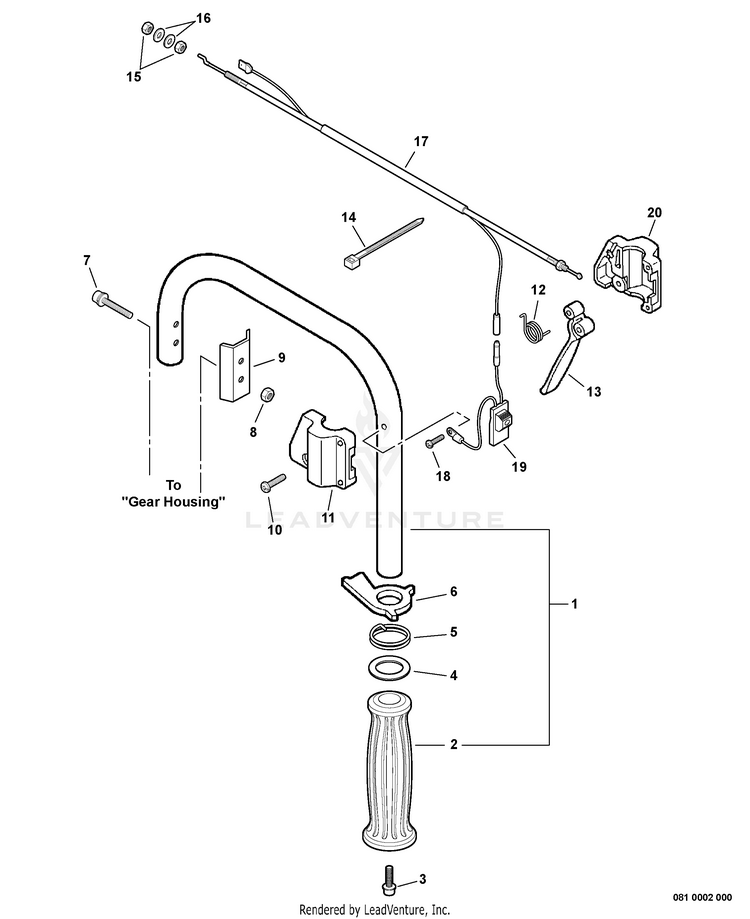

Handle, Throttle Control

...
...
1
HANDLE ASSY - REAR Includes ITEM 2 ECH-35100005561
...
2
GRIP, HANDLE ECH-35131527931
...
3
SCREW 5x16 ECH-90024205016
...
4
SPACER ECH-17807002061
...
5
SPRING, THROTTLE LOCKOUT ECH-17801302060
...
6
LOCKOUT, THROTTLE ECH-17801202061
...
7
BOLT M5x35 ECH-90016205035
...
8
NUT, LOCK M5 ECH-90056000005
...
9
PLATE ECH-35164105560
...
10
SCREW 4x25 ECH-90024504025
...
11
BRACKET, LEFT CONTROL ECH-17805201261
...
12
SPRING, THROTTLE RETURN ECH-17804301260
...
13
CONTROL, THROTTLE ECH-17801007660
...
14
TIE, CABLE ECH-17812156030
...
15
NUT M6 ECH-90050200006
...
16
WASHER 6.5x11.5x0.8 ECH-90060000006
...
17
CABLE ASSY, THROTTLE ECH-17810009061
...
18
SCREW 4x30 ECH-90024504030
...
19
SWITCH, ON-OFF ECH-16340004460
...
20
BRACKET, RIGHT CONTROL ECH-17802401261
...
...
...
...
...
