Echo ED-200 S/N: 05001001 - 05999999 Engine Drill

Model: ED-200 S/N: 05001001 - 05999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

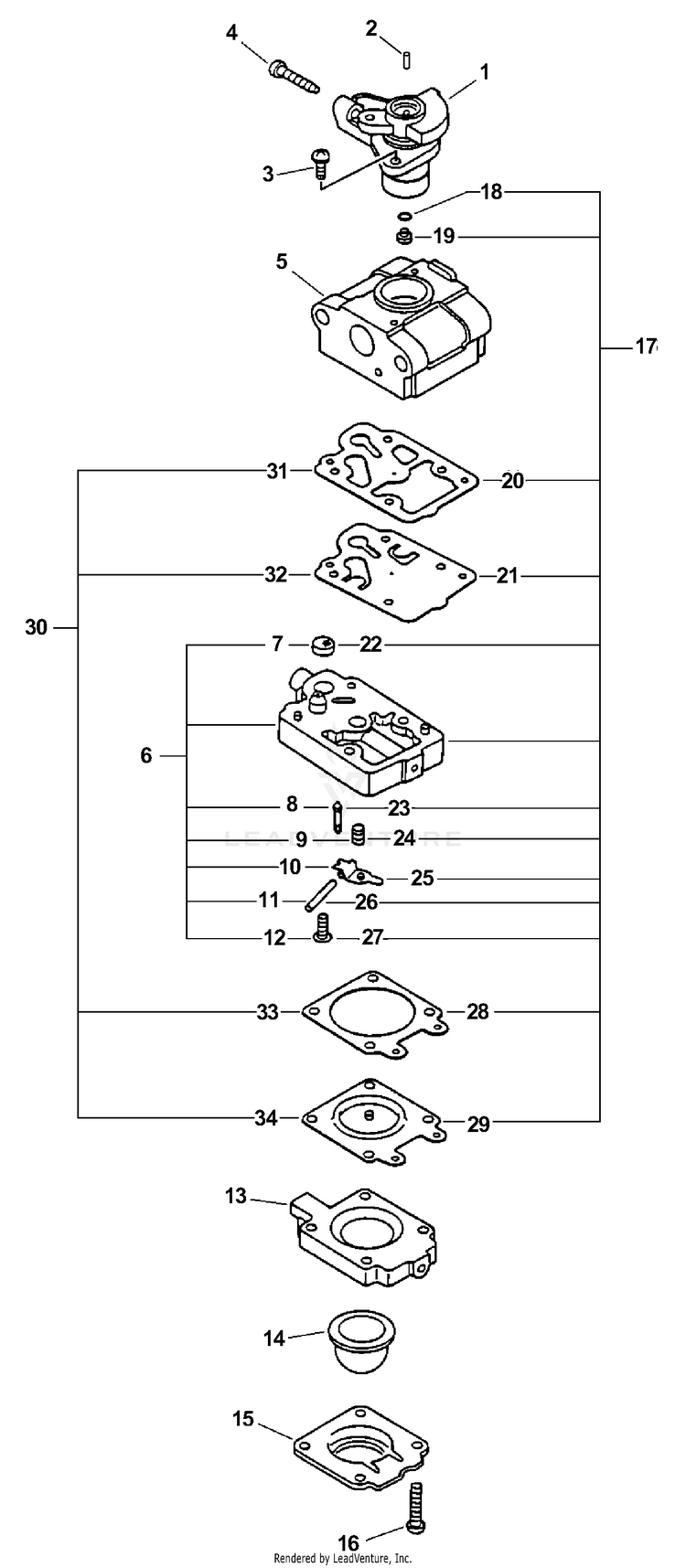

Carburetor -- WYL-180A

...
...
xx
CARBURETOR - WYL-180A ECH-A021000541
...
1
THROTTLE VALVE ASSY NOT AVAILABLE SEPARATELY ECH---
...
2
PLUG ECH-A259000000
...
3
SCREW, THROTTLE COLLAR ECH-12311444330
...
4
SCREW ECH-12313440030
...
5
BODY, CARBURETOR NOT AVAILABLE SEPARATELY ECH---
...
6
BODY ASSY, PUMP INCLUDES ITEMS 7-12 ECH-12317905560
...
7
STRAINER ECH---
...
8
VALVE, INLET NEEDLE ECH---
...
9
SPRING, METERING LEVER ECH---
...
10
LEVER, METERING ECH---
...
11
PIN, METERING LEVER ECH---
...
12
SCREW, METERING LEVER PIN ECH---
...
13
BODY ASSY, PURGE ECH-12318005560
...
14
BULB, PURGE ECH-12318140630
...
15
RETAINER, PURGE BULB ECH-12314205560
...
16
SCREW ECH-12311005560
...
17
REPAIR KIT INCLUDES ITEMS 18-29 ECH-P003001320
...
18
O-RING ECH---
...
19
JET ECH---
...
20
GASKET, PUMP ECH---
...
21
DIAPHRAGM, PUMP ECH---
...
22
STRAINER ECH---
...
23
VALVE, INLET NEEDLE ECH---
...
24
SPRING, METERING LEVER ECH---
...
25
LEVER, METERING ECH---
...
26
PIN, METERING LEVER ECH---
...
27
SCREW, METERING LEVER PIN ECH---
...
28
GASKET, DIAPHRAGM ECH---
...
29
DIAPHRAGM, METERING ECH---
...
30
GASKET / DIAPHRAGM KIT INCLUDES ITEMS 31-34 ECH-P003001310
...
31
GASKET, PUMP ECH---
...
32
DIAPHRAGM, PUMP ECH---
...
33
GASKET, DIAPHRAGM ECH---
...
34
DIAPHRAGM, METERING ECH---
...
...
...
...
...
