Echo ED-200 S/N: 05001001 - 05999999 Engine Drill

Model: ED-200 S/N: 05001001 - 05999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

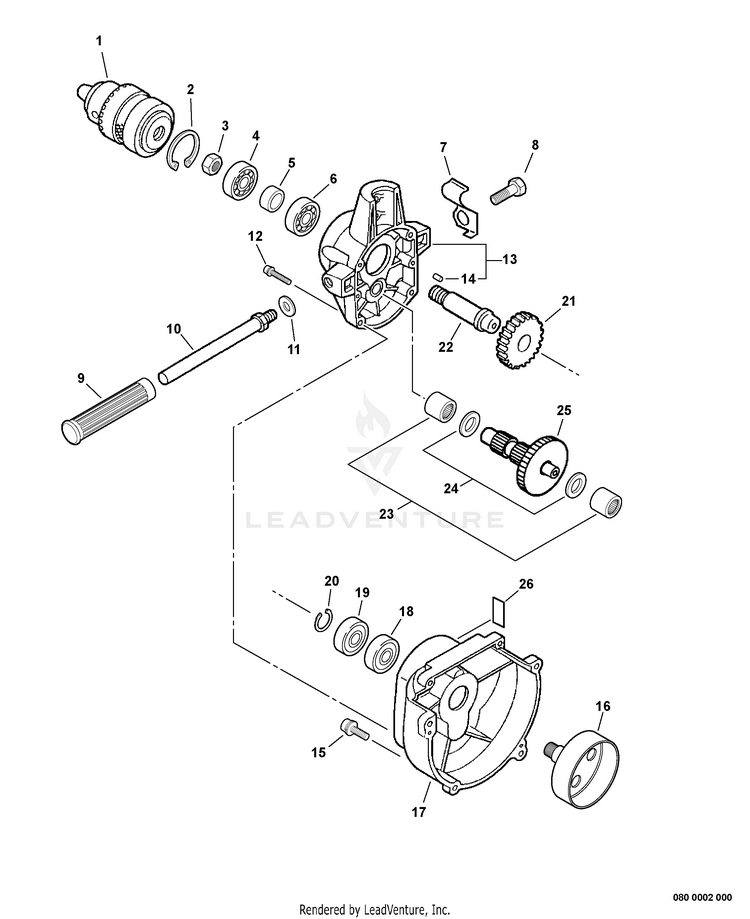

Gear Case, Chuck

...
...
1
CHUCK, KEYED ECH-60405105560
...
2
RING, SNAP 32 ECH-90070200032
...
3
NUT, 12 ECH-22431920960
...
4
BEARING, BALL 6002 DDU ECH-90080206002
...
5
COLLAR ECH-60404405560
...
6
BEARING, BALL 6002 ECH-90080036002
...
7
HOLDER, CHUCK KEY ECH-89757505560
...
8
BOLT 10x1.5x15 ECH-90010010015
...
9
GRIP, HANDLE ECH-35131128330
...
10
HANDLE, LEFT ECH-35121005560
...
11
WASHER 10.5x18x1.6 ECH-90060000010
...
12
BOLT 5x25 ECH-90016205025
...
13
HOUSING, GEAR CASE Includes ITEM 14 ECH-60430520960
...
14
PIN, LOCATING 4 ECH-V622000020
...
15
SCREW 4x16 ECH-90024204016
...
16
DRUM, CLUTCH ECH-17500505560
...
17
COVER, FAN ECH-10151120960
...
18
BEARING, BALL ECH-9404206001
...
19
BEARING, BALL 6001 ECH-90080036001
...
20
RING, SNAP 12 ECH-90070100012
...
21
GEAR, SPUR ECH-60422405560
...
22
GEAR, SHAFT ECH-60602109060
...
23
BEARING, NEEDLE ECH-60422105560
...
24
WASHER ECH-60422305560
...
25
GEAR, SHAFT ECH-60420605560
...
26
LABEL - CAUTION - HOT ECH-X505002310
...
...
...
...
...
