Echo DSRM-200 S/N: T9000001001 - T90000999999 Duster Mister

Model: DSRM-200 S/N: T9000001001 - T90000999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

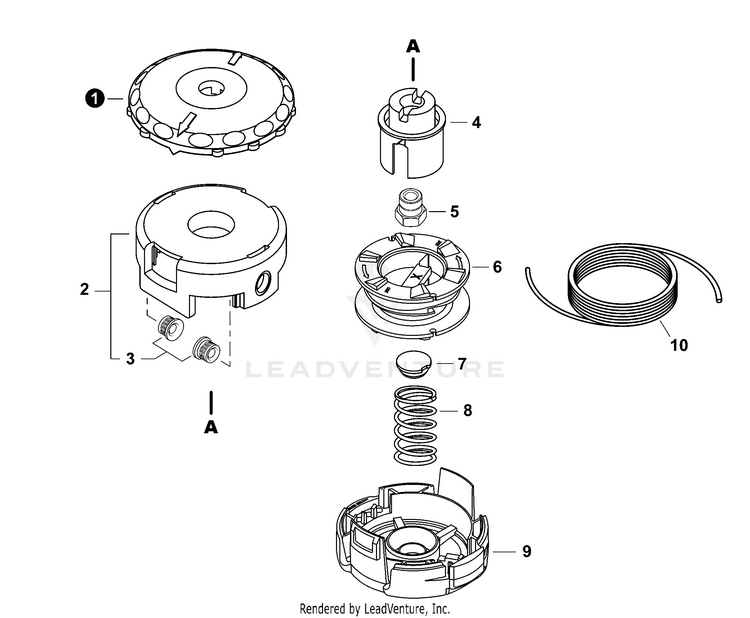

Trimmer Head

...
...
1
KNOB, SF400 - NA ECH-E415000280
...
2
HOUSING, SPOOL Includes Item 3 ECH-X470000470
...
3
EYELET, TRIMMER HEAD ECH-X475000170
...
4
HUB (LH) BLACK ECH-X476000100
...
5
BUSHING M10X1.25 LH GOLD ECH-V160000360
...
6
SPOOL ECH-X473000190
...
7
CAP, SPRING ECH-V494001380
...
8
SPRING, GOLD, SF ECH-V450002590
...
9
DRUM, LID ECH-X472000110
...
10
LINE, NYLON - 40' SILENTWIST GREEN ECH-320080060
...
...
...
...
...
