Echo DM-9 Duster Mister

Model: DM-9

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

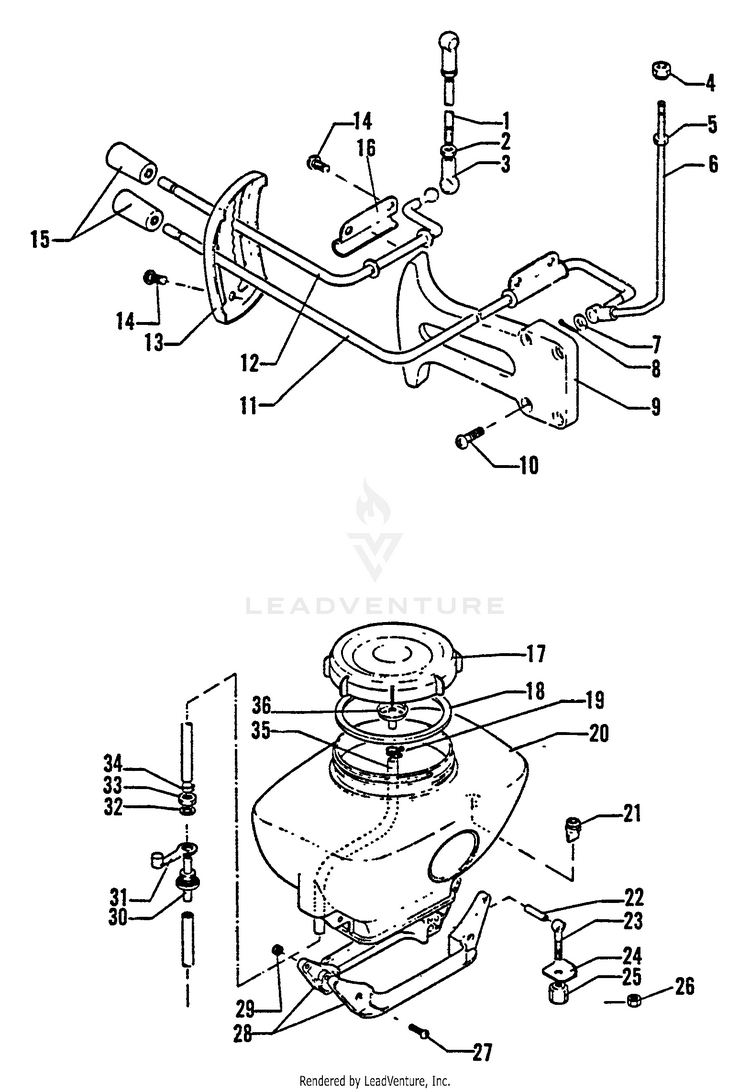

Throttle, Tank Assy

...
...
1
ROD, DUST CONTROL ECH-70101401110
...
2
NUT M5 ECH-90050000005
...
3
CONNECTOR ECH-70102001110
...
4
NUT ECH-17802101110
...
5
NUT ECH-900500-00004
...
6
ROD, THROTTLE ECH-17801101110
...
7
WASHER 4 MM ECH-90060000004
...
8
PIN, COTTER ECH-90030016010
...
9
BRACKET, DIAL ECH-70111201810
...
10
SCREW 5x22 ECH-90024205022
...
11
LEVER, THROTTLE ECH-17800501610
...
12
LEVER, CONTROL ECH-70100501110
...
13
DIAL ECH-70111101110
...
14
SCREW 5x10 ECH-90024205010
...
15
KNOB ECH-17802301110
...
16
RETAINER ECH-17811401110
...
17
CAP, CHEMICAL TANK ECH-25000101110
...
18
GASKET, TANK ECH-E113000180
...
19
CLIP 10.5 MM ECH-13201314010
...
20
TANK, CHEMICAL - 10 LITER ECH-25000001111
...
21
PLUG, RUBBER ECH-25001601110
...
22
PIN ECH-25091401110
...
23
BOLT ECH-25091501110
...
24
WASHER ECH-25091801110
...
25
NUT ECH-25091601110
...
26
NUT - 8 ECH-90050400008
...
27
SCREW 5x30 ECH-90024205030
...
28
HOLDER ECH-25090001810
...
29
NUT M5 ECH-90050200005
...
30
CONNECTOR, PIPE ECH-36301700310
...
31
PLUG ECH-36302200510
...
32
WASHER 12 ECH-V309000170
...
33
NUT 12 ECH-36301900310
...
34
CLIP 10.5 MM ECH-13201314010
...
35
PIPE, INNER PRESSURE 7x11x400BL ECH-36301400310
...
36
CONNECTOR, PIPE ECH-25001300310
...
...
...
...
...
