Echo DM-9 Duster Mister

Model: DM-9

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

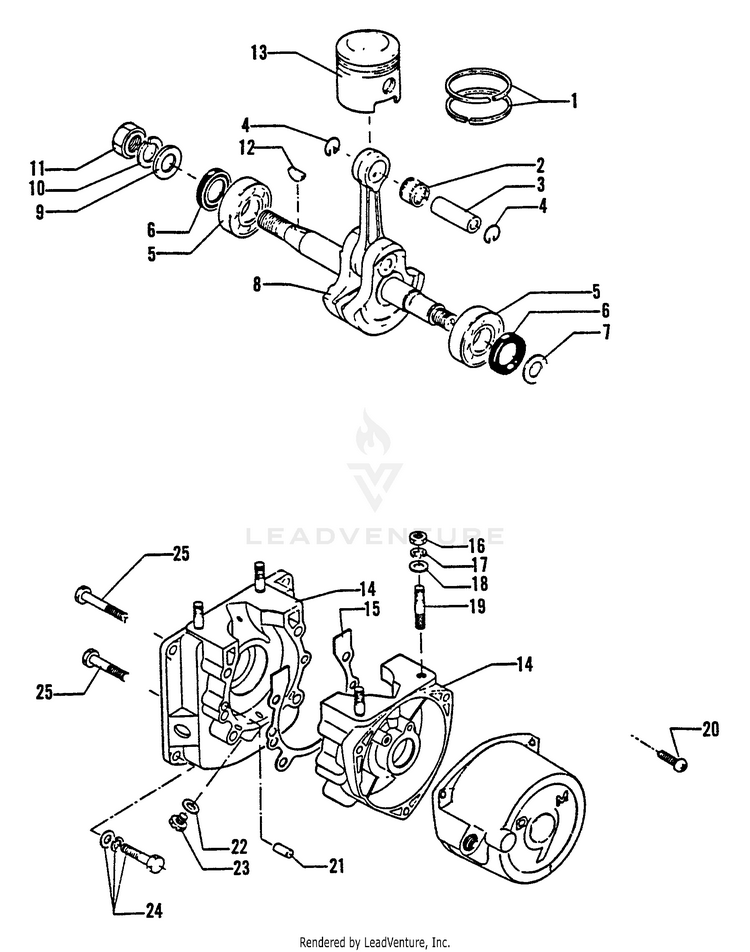

Crankcase

...
...
1
RING, PISTON ECH-10001101110
...
2
BEARING, NEEDLE 10 ECH-10001212331
...
3
PIN, PISTON ECH-10001300410
...
4
RING, SNAP 8 ECH-10001500120
...
5
BEARING, BALL 6202 ECH-90081036202
...
6
SEAL, OIL 15 ECH-10021300310
...
7
WASHER PB-400 ECH-90061700010
...
8
CRANKSHAFT ASSY ECH-10010001111
...
9
WASHER ECH-10013601110
...
10
WASHER, SPRING ECH-10013301110
...
11
NUT ECH-10013401110
...
12
KEY ECH-10014200310
...
13
PISTON KIT ECH-10000002412
...
14
CRANKCASE KIT ECH-10020001110
...
15
GASKET, CRANKCASE USE GASKET KIT 88900001111 ECH---
...
16
NUT, HEX M6 ECH-90050000006
...
17
WASHER, SPRING 6 ECH-90060500006
...
18
WASHER 6.5x11.5x0.8 ECH-90060000006
...
19
STUD ECH-10025400130
...
20
SCREW 5x16 ECH-90024205016
...
21
PIN, LOCATING 5x10 ECH-10021502830
...
22
PACKING ECH-13131000230
...
23
BOLT, DRAIN ECH-10051000310
...
24
BOLT ECH-90014206025
...
25
BOLT ECH-10024401111
...
...
...
...
...
