Echo DM-9 Duster Mister

Model: DM-9

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

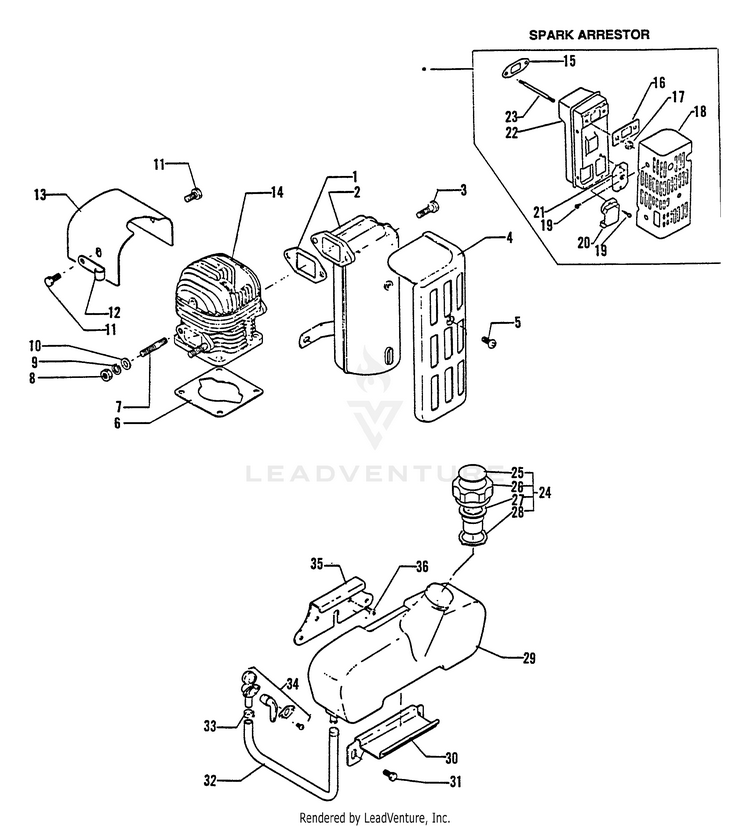

Engine, Exhaust, Fuel Sys

...
...
1
GASKET, MUFFLER ECH-14551001111
...
2
MUFFLER ECH-14561001110
...
3
BOLT ECH-90014006020
...
4
COVER, MUFFLER ECH-14562101110
...
5
SCREW 5x14 ECH-90024205014
...
6
GASKET, CYLINDER ECH-10101001111
...
7
BOLT, STUD ECH-10101301110
...
8
NUT, HEX M6 ECH-90050000006
...
9
WASHER, SPRING 6 ECH-90060500006
...
10
WASHER 6.5x11.5x0.8 ECH-90060000006
...
11
BOLT 6x10 ECH-90014006010
...
12
CLIP, CORD ECH-15911001110
...
13
COVER, CYLINDER ECH-10151401110
...
14
CYLINDER KIT ECH-10100101110
...
*
MUFFLER ASSY Includes ITEMS 15-23 ECH-14580301112
...
15
GASKET, MUFFLER ECH-14551001111
...
16
WASHER ECH-14564200762
...
17
NUT, LOCK 6 ECH-90056000006
...
18
COVER, MUFFLER ECH-14587101110
...
19
SCREW 5x10 ECH-90024205010
...
20
RETAINER, SCREEN ECH-14586301111
...
21
SCREEN, SPARK ARRESTER ECH-14586201110
...
22
MUFFLER ECH-14580601110
...
23
BOLT, STUD ECH-10101400761
...
24
CAP ASSY INCLUDES ITEMS 26 - 28 ECH-13100403910
...
25
LABEL - FUEL MIX ECH-89014706160
...
26
CAP, FUEL NOT AVAILABLE SEPARATELY ECH---
...
27
CAP, VENT ECH-13100305330
...
28
GASKET, FUEL CAP ECH-13101621230
...
29
TANK, FUEL ECH-13101001112
...
30
BRACKET, FUEL TANK ECH-13191801110
...
31
BOLT ECH-90014606012
...
32
PIPE, FUEL ECH-13201001110
...
33
CLIP 10.5 MM ECH-13201314010
...
34
VALVE, FUEL ECH-13220000512
...
35
BRACKET, FUEL TANK ECH-13191001111
...
36
SCREW 5x14 ECH-90024205014
...
...
...
...
...
