Echo DM-9 Duster Mister

Model: DM-9

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

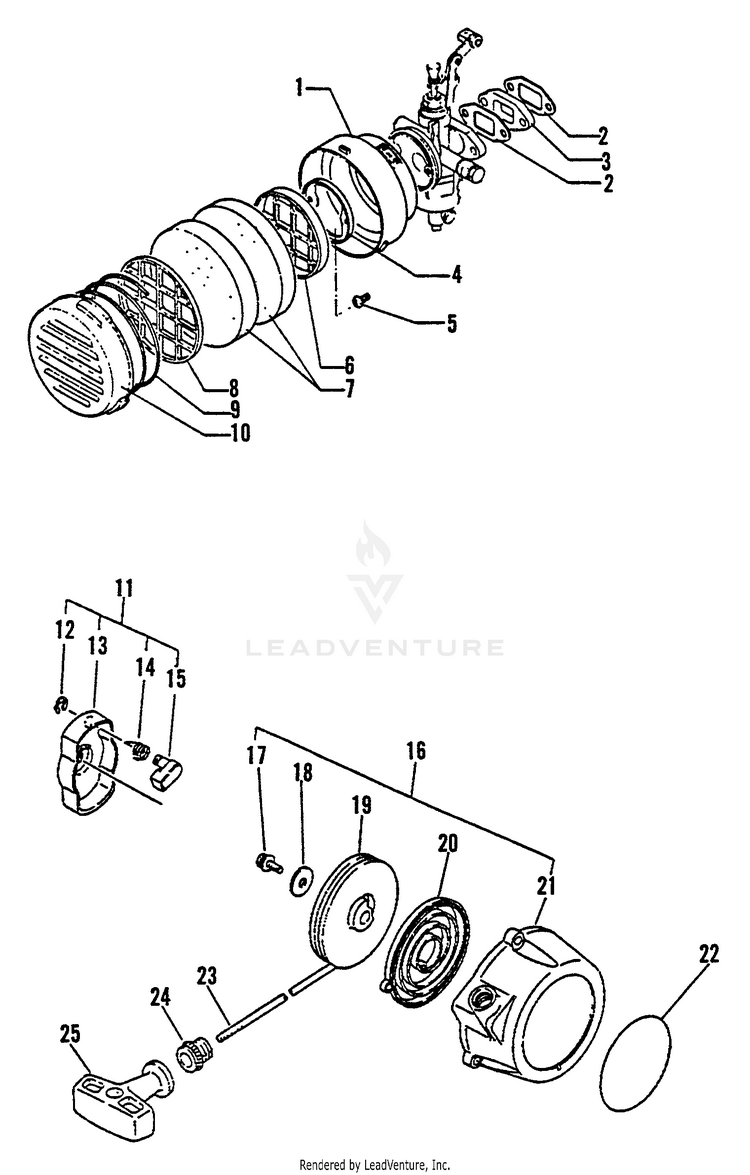

Exhaust, Intake, Starter

...
...
1
CASE, AIR FILTER ECH-13031401110
...
2
PACKING ECH-13001601110
...
3
INSULATOR ECH-13001701110
...
4
BRACKET, AIR FILTER ECH-13042000110
...
5
SCREW 4x14 ECH-90024204014
...
6
GRID, AIR FILTER ECH-13031901110
...
7
FILTER, AIR ECH-13031000410
...
8
HOLDER, AIR FILTER ECH-13031101110
...
9
SPRING, AIR FILTER COVER ECH-13031600410
...
10
COVER, AIR FILTER ECH-13031301110
...
11
PAWL CATCHER ASSY Includes ITEMS 12-15 ECH-17720202110
...
12
RING, RETAINING - 6 ECH-90070000006
...
13
CATCHER, PAWL ECH-17721002110
...
14
SPRING, RETURN ECH-17723440630
...
15
PAWL, STARTER ECH-17721840630
...
16
STARTER ASSY Includes ITEMS 17 - 21, 23 - 25 ECH-17720002110
...
17
SCREW ECH-17723640630
...
18
WASHER ECH-17721441030
...
19
REEL, ROPE ECH-17721543130
...
20
SPRING, RECOIL ECH-17722040630
...
21
CASE, RECOIL STARTER ECH-17723202110
...
22
LABEL - ECHO ECH-89011849330
...
22
LABEL - MODEL ECH-89031206231
...
23
ROPE, STARTER 4.0x880 RePower BULK OPTION: 99944450000 ECH-17722601110
...
24
GUIDE, ROPE ECH-17722742030
...
25
GRIP, STARTER ECH-17722811120
...
...
...
...
...
