Echo DM-9 Duster Mister

Model: DM-9

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

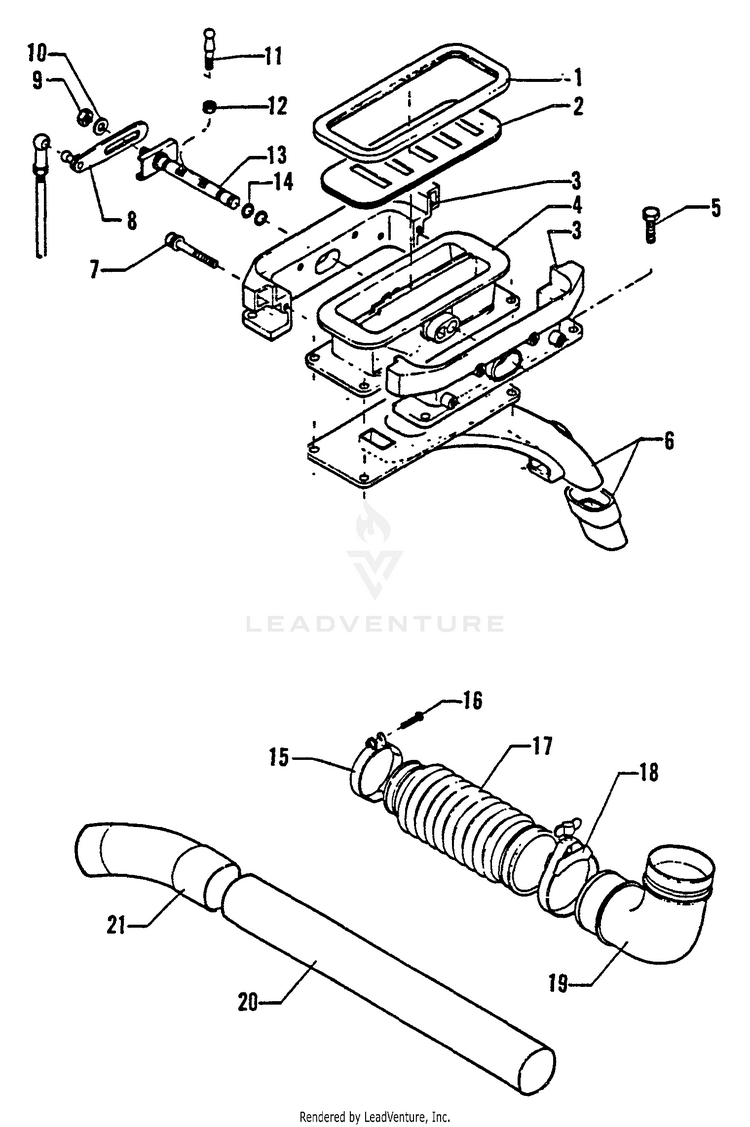

Shutter Assy, Blowing Pipes

...
...
1
GASKET ECH-27011901110
...
2
SHUTTER ASY.W/270119-01110 ECH-27010101111
...
3
TANK - LOWER ECH-27000002111
...
4
TANK - LOWER ECH-27002602111
...
5
BOLT ECH-90014606020
...
6
TUBE, DUST ECH-37030101110
...
7
SCREW 5x30 ECH-90024205030
...
8
ARM, SHUTTER ECH-27020001110
...
9
NUT, HEX M6 ECH-90050000006
...
10
WASHER 6.5x11.5x0.8 ECH-90060000006
...
11
JOINT ECH-27021601110
...
12
NUT ECH-90050900004
...
13
SHAFT, SHUTTER ECH-27020501610
...
14
O-RING ECH-27021701110
...
15
CLAMP KIT Includes ITEM 16 ECH-21040001110
...
16
SCREW 5x25 ECH-90024205025
...
17
TUBE, FLEXIBLE ECH-21001201112
...
18
CLAMP 75-85 ECH-V495001171
...
19
ELBOW ECH-21001101160
...
20
TUBE, BLOWER - STRAIGHT ECH-21001400310
...
21
TUBE, BLOWER - CURVED ECH-21002301060
...
...
...
...
...
