Echo DM-6120 S/N: D01926001001 - D01926999999 Duster Mister

Model: DM-6120 S/N: D01926001001 - D01926999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

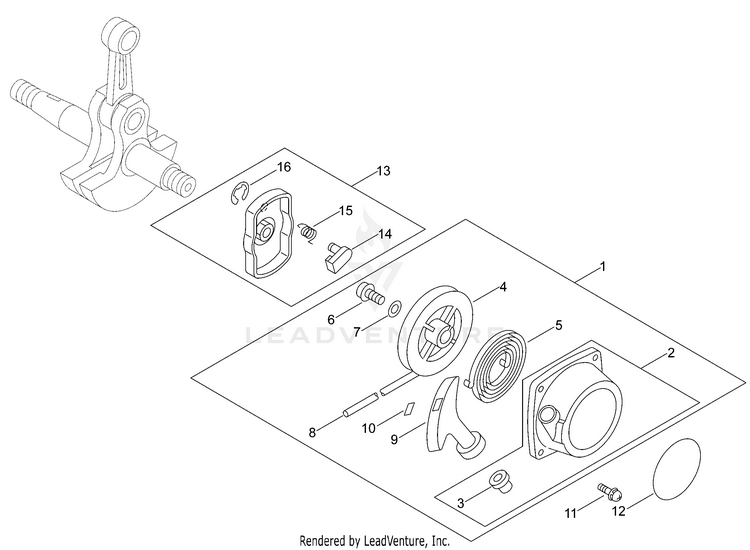

Starter

...
...
1
STARTER ASSY, RECOIL Includes Items 2-10 ECH-17720006210
...
2
CASE, STARTER Includes Item 3 ECH-P022043970
...
3
GUIDE, ROPE ECH-17722742030
...
4
REEL, ROPE ECH-17721511120
...
5
SPRING, RECOIL ECH-17722011120
...
6
SCREW ECH-17723640630
...
7
WASHER ECH-P022022280
...
8
ROPE, STARTER 3.8x1400 ECH-17722611120
...
9
GRIP, STARTER ECH-17722811120
...
10
RETAINER, ROPE ECH-P022037670
...
11
SCREW 4x18 ECH-90029204018
...
12
LABEL - RECOIL STARTER ECH-X502000780
...
13
PAWL ASSY, STARTER Includes Items 14-16 ECH-A052000470
...
14
PAWL, STARTER ECH-17721840630
...
15
SPRING, RETURN ECH-17723440630
...
16
E-RING 4 ECH-P022002100
...
...
...
...
...
