Echo DM-6120 S/N: D01926001001 - D01926999999 Duster Mister

Model: DM-6120 S/N: D01926001001 - D01926999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

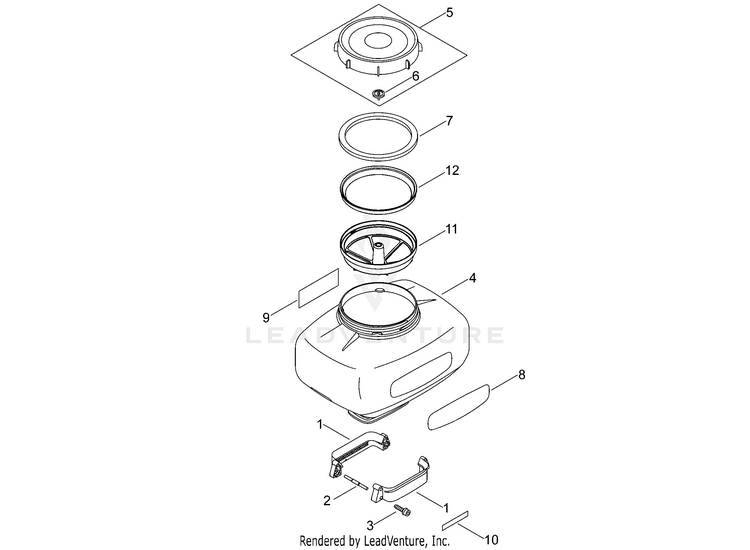

Chemical Tank

...
...
1
BRACKET ECH-E115000060
...
2
PIN, LOCATING ECH-25091406210
...
3
SCREW, TAPPING HS M5x35 ECH-9114805035
...
4
TANK, CHEMICAL 23L ECH-25001708013
...
5
CAP, TANK Includes Item 6 ECH-P100003000
...
6
CONNECTOR, PIPE ECH-25001300310
...
7
GASKET, CAP ECH-25001102011
...
8
LABEL - ECHO ECH-X502000440
...
9
LABEL - CAUTION - ISO ECH-89016009461
...
10
LABEL - MODEL DM-6120 ECH-X503013870
...
11
FILTER, TANK ECH-E220000030
...
12
FILTER, TANK ECH-E220000040
...
...
...
...
...
