Echo DM-6120 S/N: D01926001001 - D01926999999 Duster Mister

Model: DM-6120 S/N: D01926001001 - D01926999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

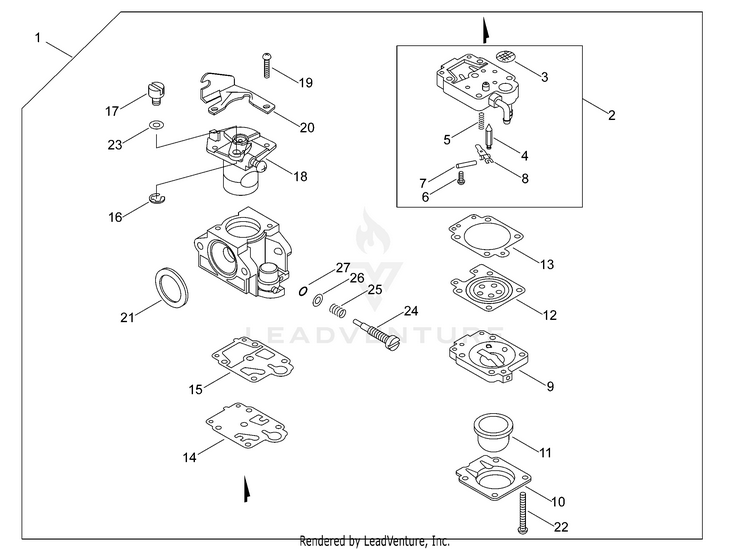

Carburetor

...
...
1
CARBURETOR - WYK-496 Includes Items 2-27 ECH-A021004620
...
2
BODY ASSY, PUMP Includes Items 3-8 ECH-P003005910
...
3
SCREEN, FUEL INLET ECH-12312610631
...
4
VALVE, INLET NEEDLE ECH-12313719830
...
5
SPRING, METERING LEVER ECH-12312205560
...
6
SCREW ECH-P003005510
...
7
PIN, METERING LEVER ECH-12313803930
...
8
LEVER, METERING ECH-12312338330
...
9
BODY ASSY, PURGE ECH-12318005560
...
10
RETAINER, PURGE BULB ECH-12314205560
...
11
BULB, PURGE ECH-12318140630
...
12
DIAPHRAGM, METERING ECH-P003001850
...
13
GASKET, METERING DIAPHRAGM ECH-12314005560
...
14
DIAPHRAGM, FUEL PUMP ECH-12311240630
...
15
GASKET, PUMP ECH-P003000100
...
16
E-RING ECH-12317307930
...
17
SWIVEL ECH-12317245130
...
18
VALVE, THROTTLE ECH-P003005920
...
19
SCREW ECH-12311440630
...
20
BRACKET, THROTTLE CABLE ECH-P003000180
...
21
RING, PACKING ECH-12314312110
...
22
SCREW ECH-12311005560
...
23
WASHER ECH-12314954230
...
24
NEEDLE, MIXTURE ECH-P003005930
...
25
SPRING, NEEDLE ECH-12312122130
...
26
WASHER ECH-12317454230
...
27
O-RING ECH-12318354230
...
...
...
...
...
