Echo DM-6120 S/N: D01926001001 - D01926999999 Duster Mister

Model: DM-6120 S/N: D01926001001 - D01926999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

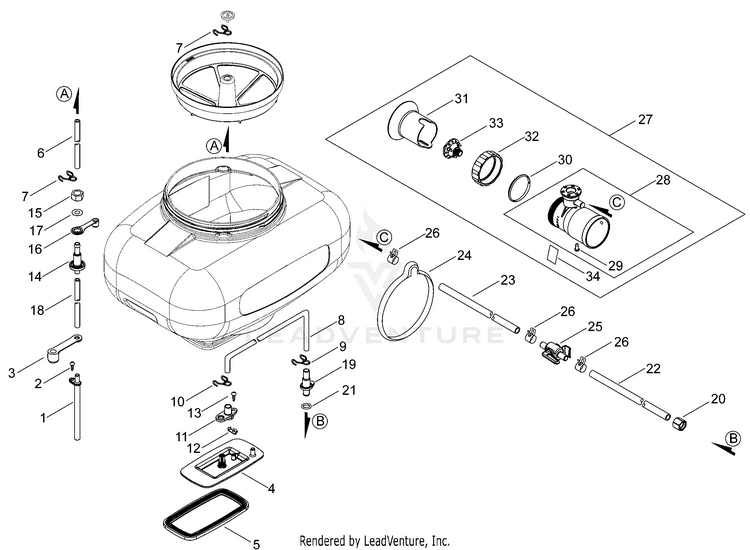

Chemical Tank Tubes

...
...
1
PIPE, VENT ECH-E105000001
...
2
SCREW 5x16 SUS ECH-90028605016
...
3
PLUG ECH-36302101110
...
4
PLATE, BOTTOM ECH-25301008013
...
5
GASKET, PLATE ECH-E137000021
...
6
PIPE, INNER PRESSURE 7x11x500BL ECH-36301403210
...
7
CLIP ECH-V490001410
...
8
PIPE, DISCHARGE ECH-V471005130
...
9
CLIP ECH-V490001540
...
10
CLIP ECH-V490001550
...
11
NIPPLE, HOSE ECH-E230000190
...
12
PLATE, EYE ECH-V150004300
...
13
SCREW, TAPPING ECH-9142805015
...
14
CONNECTOR, PIPE ECH-36301700310
...
15
NUT 12 ECH-36301900310
...
16
PLUG ECH-36302200510
...
17
WASHER 12 ECH-V309000170
...
18
PIPE, OUTER PRESSURE 7x11x170L ECH-36301100210
...
19
CONNECTOR, PIPE ECH-35701001110
...
20
NUT 14 ECH-35701501110
...
21
O-RING 3x13 ECH-35701401110
...
22
PIPE, DISCHARGE 9x13x720L ECH-35703201110
...
23
PIPE Includes Items 24-30 ECH-V471005050
...
24
CLIP, TUBE 55 ECH-35791100111
...
25
VALVE, SHUT-OFF ECH-35810001113
...
26
CLAMP ECH-V495000310
...
27
NOZZLE ECH-E024000020
...
28
NOZZLE ECH-P100001820
...
29
SCREW 5x12 ECH-90024605012
...
30
RING ECH-212513-01110
...
31
COLLAR ECH-212515-01110
...
32
NUT ECH-212514-01110
...
33
NOZZLE ECH-P021051600
...
34
LABEL - MIST ECH-89003101110
...
...
...
...
...
