Echo DM-6120 S/N: D01926001001 - D01926999999 Duster Mister

Model: DM-6120 S/N: D01926001001 - D01926999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

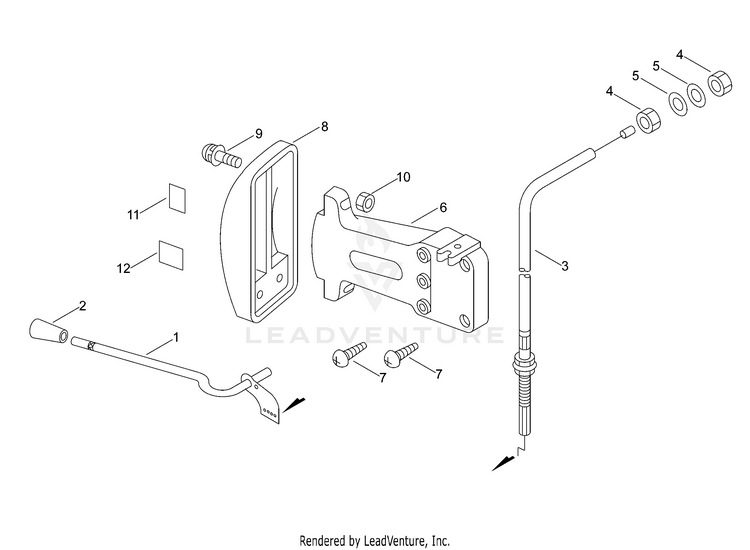

Control Levers

...
...
1
LEVER, THROTTLE ECH-C453000131
...
2
KNOB, THROTTLE CONTROL ECH-E151000010
...
3
CABLE, THROTTLE ECH-V430001330
...
4
NUT 6 MM ECH-90050300006
...
5
WASHER 6.5x11.5x0.8 ECH-90060000006
...
6
BRACKET, DIAL ECH-70111206414
...
7
SCREW 5x25 SUS ECH-90028605025
...
8
DIAL, METERING ECH-E150000041
...
9
SCREW 5x25 SUS ECH-90029205025
...
10
NUT 5B ECH-90050400005
...
11
LABEL - THROTTLE ECH-89034805060
...
12
LABEL - STOP ECH-89015739131
...
...
...
...
...
