Echo DM-6120 S/N: D01926001001 - D01926999999 Duster Mister

Model: DM-6120 S/N: D01926001001 - D01926999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

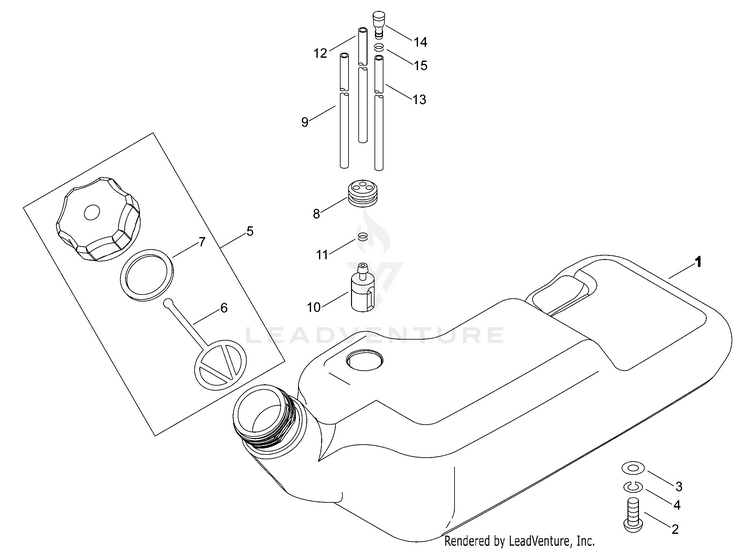

Fuel System

...
...
1
TANK, FUEL ECH-A350001910
...
2
SCREW 6x14 ECH-90022006014
...
3
WASHER ECH-145642-00760
...
4
WASHER, SPRING 6 ECH-90060500006
...
5
ASSY, FUEL CAP, ORANGE Includes Items 6-7 ECH-P100014810
...
6
CONNECTOR, CAP L= 100 MM ECH-13105156030
...
7
GASKET, FUEL CAP ECH-V107000230
...
8
GROMMET, FUEL ECH-13211555931
...
9
PIPE, FUEL 3x6x280 MM ECH-V471000771
...
10
FILTER, FUEL ECH-A369000440
...
11
CLIP 6.5 MM ECH-V490001230
...
12
PIPE, RETURN, FUEL, 3X6X145 ECH-V471006090
...
13
PIPE, FUEL 3x6x110 ECH-13201056031
...
14
VENT ASSY ECH-A356000031
...
15
CLIP, TUBE ECH-13201305060
...
...
...
...
...
