Echo DM-6120 S/N: D01926001001 - D01926999999 Duster Mister

Model: DM-6120 S/N: D01926001001 - D01926999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

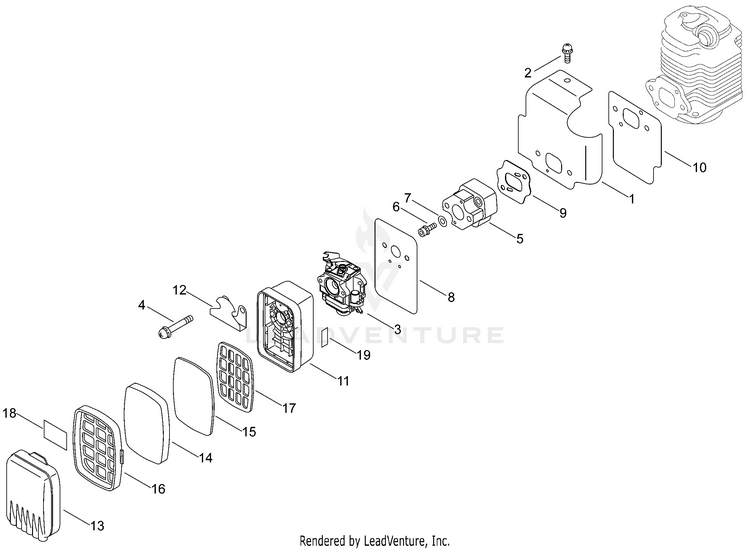

Intake, Air Filter

...
...
1
COVER, ENGINE - INTAKE ECH-A160000680
...
2
SCREW 5x10 ECH-90024205010
...
3
CARBURETOR - WYK-496 ECH-A021004620
...
4
SCREW 5x60 ECH-9133105060
...
5
INSULATOR KIT ECH-P021010214
...
6
BOLT 5x30 ECH-90010505030
...
7
WASHER 5.5x10x2.3 ECH-14571214730
...
8
GASKET, INTAKE ECH-V103001530
...
9
GASKET, INTAKE ECH-V103001520
...
10
GASKET, INTAKE ECH-V103001540
...
11
CASE ASSY, AIR FILTER ECH-P021038090
...
12
PLATE, PREVENT ECH-A244000020
...
13
COVER, AIR FILTER ECH-A232000260
...
14
PRE-FILTER, FOAM ECH-13031002910
...
15
FILTER, AIR ECH-13031703710
...
16
GRID, PRE-FILTER ECH-13031103710
...
17
GRID, AIR FILTER ECH-13031903710
...
18
LABEL - AIR FILTER ECH-89018703710
...
19
LABEL - CHOKE ECH-89012165830
...
...
...
...
...
