Echo CSG-7410 S/N: C72715001001 - C72715999999 Cut-Off Saw

Model: CSG-7410 S/N: C72715001001 - C72715999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

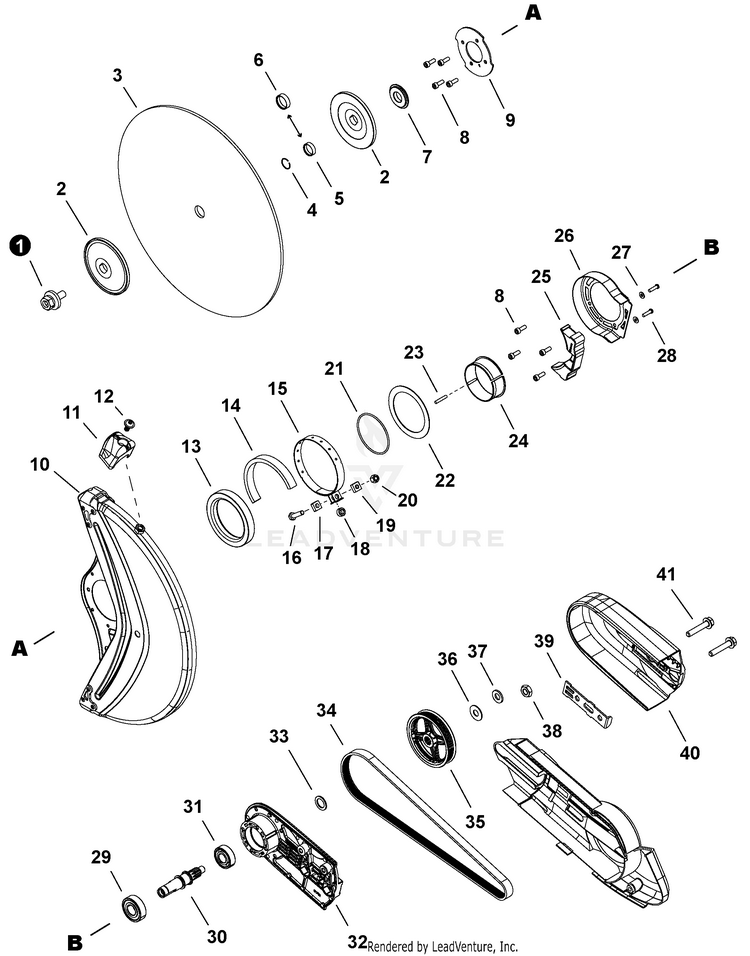

Cutter Arm Cover S/N C72715020001 - C72715999999

...
...
1
BOLT ASSY ECH-P100001120
...
2
FLANGE ASSY, CUTTER ECH-P100011660
...
3
CUT-OFF WHEEL ECH-X407000520
...
4
RING, SNAP ECH-V582000210
...
5
ADAPTOR, BLADE 20 ECH-V360000380
...
6
ADAPTOR, BLADE 25.4 ECH-V360000400
...
7
COLLAR 18 ECH-V360000310
...
8
BOLT 5 ECH-V203002210
...
9
PLATE ECH-C371000210
...
10
COVER, CUTTER ECH-P100011670
...
11
KNOB ECH-M613000360
...
12
BOLT 6 ECH-V204001820
...
13
CUSHION ECH-V420005700
...
14
CUSHION ECH-V420005710
...
15
BAND ECH-V495004030
...
16
BOLT 6x25 ECH-90010006025
...
17
SPACER ECH-V376002910
...
18
COLLAR 6 ECH-V354000670
...
19
NUT 6 ECH-V264000320
...
20
NUT ECH-V264000190
...
21
O-RING ECH-V581001010
...
22
SPACER ECH-V376002920
...
23
SEAL ECH-V541000810
...
24
RING, SLIDE ECH-V583000540
...
25
HOLDER, CUSHION ECH-V423000170
...
26
COVER, SPRING ECH-C235000070
...
27
WASHER 4 MM ECH-90060300004
...
28
SCREW 4 ECH-V252000800
...
29
BEARING, BALL 6203 ECH-90081206203
...
30
DRIVESHAFT ECH-C504001260
...
31
BEARING, BALL 6202 DDU ECH-90081206202
...
32
CASE ASSY ECH-P021052710
...
33
WASHER ECH-V310000130
...
34
BELT, DRIVE ECH-V196000120
...
35
PULLEY ECH-V176000281
...
36
WASHER 11 ECH-V308000120
...
37
WASHER, CONICAL ECH-V347000060
...
38
NUT 3N-10 ECH-90050200010
...
39
PLATE, EYE ECH-V150004052
...
40
COVER, CUTTER ARM ECH-C361000360
...
41
BOLT 8 ECH-V205001231
...
...
...
...
...
