Echo CSG-7410 S/N: C72715001001 - C72715999999 Cut-Off Saw

Model: CSG-7410 S/N: C72715001001 - C72715999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

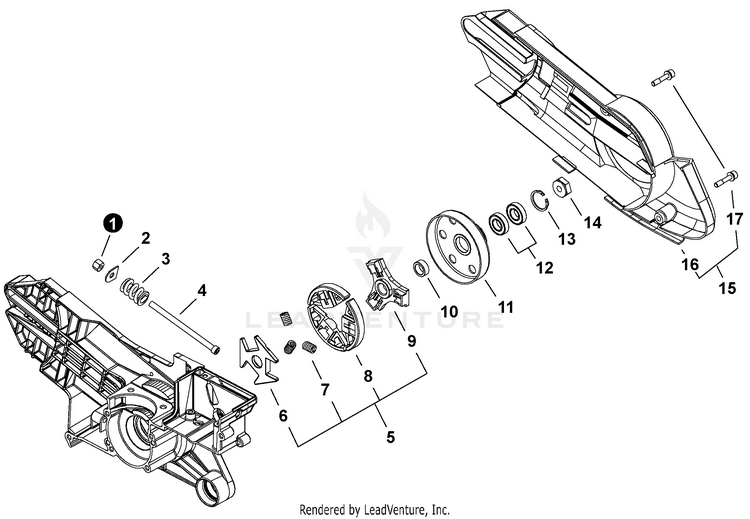

Clutch

...
...
1
NUT ECH-V264000190
...
2
WASHER ECH-V304000290
...
3
SPRING, COIL ECH-V450001240
...
4
BOLT 6 ECH-V204001680
...
5
CLUTCH ASSY Includes Items 6-9 ECH-A056000850
...
6
BOSS, CLUTCH B ECH-A552000300
...
7
SPRING, CLUTCH ECH-A566000210
...
8
CLUTCH SHOE SET ECH-P021052700
...
9
BOSS, CLUTCH B ECH-A552000480
...
10
COLLAR 12 ECH-V357000390
...
11
DRUM, CLUTCH ECH-A556001690
...
12
BEARING, BALL ECH-V592000440
...
13
RING, SNAP ECH-9241924000
...
14
NUT 8 ECH-V265000560
...
15
KIT, CUTTER ARM COVER Includes Items 16-17 ECH-P100006950
...
16
COVER, CUTTER ARM ECH-C361000370
...
17
BOLT 5 ECH-V203002350
...
...
...
...
...
