Echo CSG-7410 S/N: C72715001001 - C72715999999 Cut-Off Saw

Model: CSG-7410 S/N: C72715001001 - C72715999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

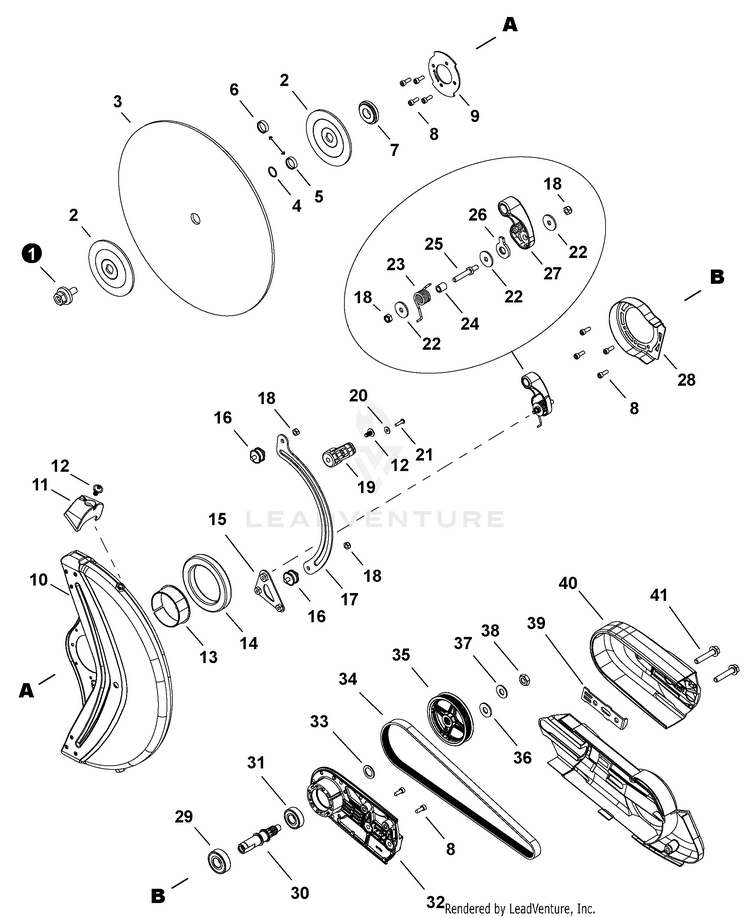

Cutter Arm Cover S/N C72715001001 - C72715020000

...
...
1
BOLT ASSY ECH-P100001640
...
2
FLANGE, CUTTER ECH-C365000430
...
3
CUT-OFF WHEEL ECH-X407000520
...
4
RING, SNAP ECH-V582000210
...
5
ADAPTOR, BLADE 20 ECH-V360000380
...
6
ADAPTOR, BLADE 25.4 ECH-V360000400
...
7
COLLAR 18 ECH-V360000320
...
8
BOLT 5 ECH-V203002210
...
9
PLATE ECH-C371000160
...
10
COVER, CUTTER ECH-P100006930
...
11
KNOB ECH-M613000310
...
12
BOLT 6 ECH-V204001820
...
13
RING, SLIDE ECH-V583000210
...
14
RING ECH-V583000470
...
15
PLATE ECH-C371000170
...
16
CUSHION 6 ECH-V402000110
...
17
PLATE, ADJUST ECH-C371000050
...
18
NUT, LOCK ECH-90056100006
...
19
LEVER ECH-C442000100
...
20
WASHER ECH-9220404000
...
21
SCREW 4x16 ECH-90025604016
...
22
WASHER 23x6.5x2 MM ECH-V304000320
...
23
SPRING, TORSION ECH-V452001820
...
24
COLLAR ECH-V354000080
...
25
BOLT ECH-V204001810
...
26
PLATE ECH-M613000320
...
27
LEVER ECH-E151000030
...
28
COVER, SPRING ECH-C235000070
...
29
BEARING, BALL 6203 ECH-90081206203
...
30
DRIVESHAFT ECH-C504001260
...
31
BEARING, BALL 6202 DDU ECH-90081206202
...
32
CASE ASSY ECH-P021052710
...
33
WASHER ECH-V310000130
...
34
BELT, DRIVE ECH-V196000120
...
35
PULLEY ECH-V176000281
...
36
WASHER 11 ECH-V308000120
...
37
WASHER, CONICAL ECH-V347000060
...
38
NUT 3N-10 ECH-90050200010
...
39
PLATE, EYE ECH-V150004052
...
40
COVER, CUTTER ARM ECH-C361000360
...
41
BOLT 8 ECH-V205001231
...
...
...
...
...
