Echo CSG-7410 S/N: C72715001001 - C72715999999 Cut-Off Saw

Model: CSG-7410 S/N: C72715001001 - C72715999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

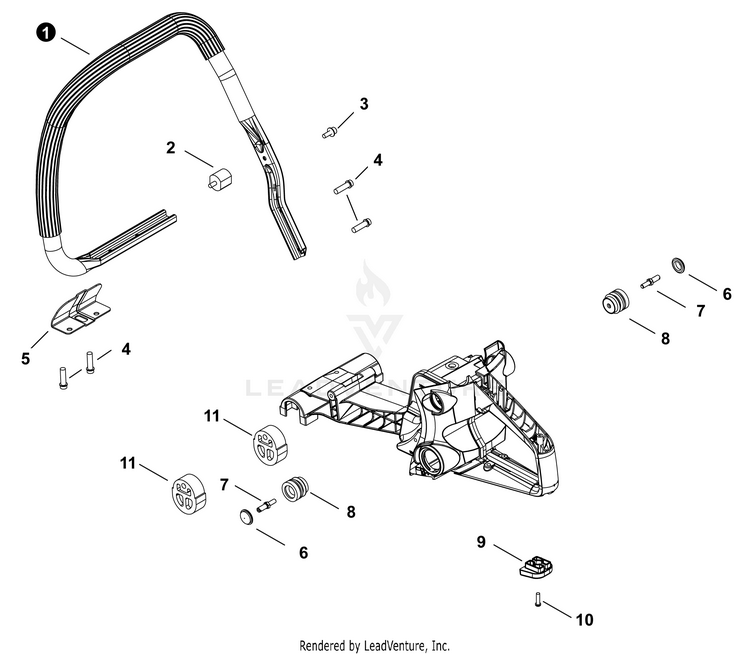

Handle

...
...
1
HANDLE, FRONT ECH-C400001511
...
2
CUSHION 5 ECH-V401000220
...
3
BOLT 5 ECH-V203002230
...
4
BOLT 6 ECH-V204001290
...
5
GUARD ECH-J447001300
...
6
PLUG ECH-V421000050
...
7
BOLT, STOPPER 26 ECH-V203001660
...
8
CUSHION ECH-V401000350
...
9
CUSHION ECH-V420005040
...
10
SCREW 4 ECH-V252000800
...
11
CUSHION ECH-V420005030
...
...
...
...
...
