Echo CSG-7410 S/N: C72715001001 - C72715999999 Cut-Off Saw

Model: CSG-7410 S/N: C72715001001 - C72715999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

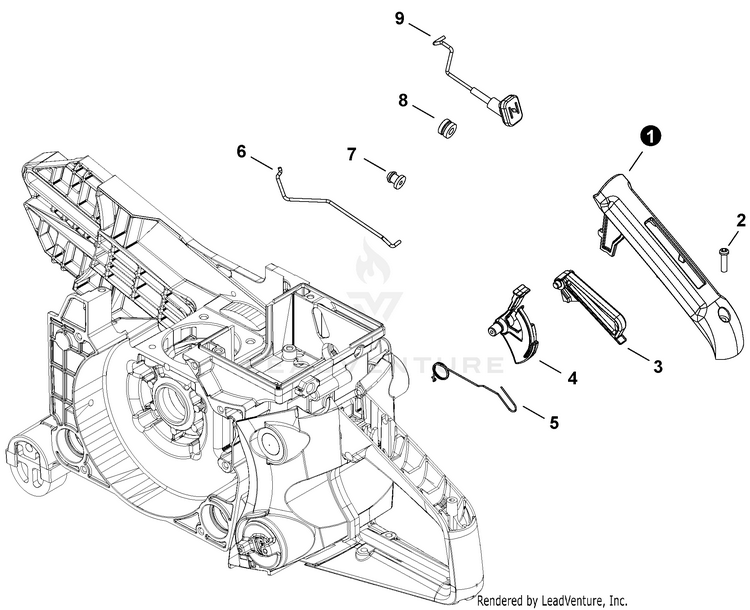

Throttle Control

...
...
1
COVER, HANDLE ECH-C411000240
...
2
SCREW 4 ECH-V252000800
...
3
LEVER, THROTTLE LOCKOUT ECH-C460000301
...
4
TRIGGER, THROTTLE ECH-C450000631
...
5
SPRING, TORSION ECH-V452001620
...
6
ROD, THROTTLE ECH-C454000530
...
7
GROMMET ECH-V133000040
...
8
GROMMET, CHOKE ECH-V130000160
...
9
ROD, CHOKE ECH-A240000181
...
...
...
...
...
