Echo CSG-7410 S/N: C72715001001 - C72715999999 Cut-Off Saw

Model: CSG-7410 S/N: C72715001001 - C72715999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

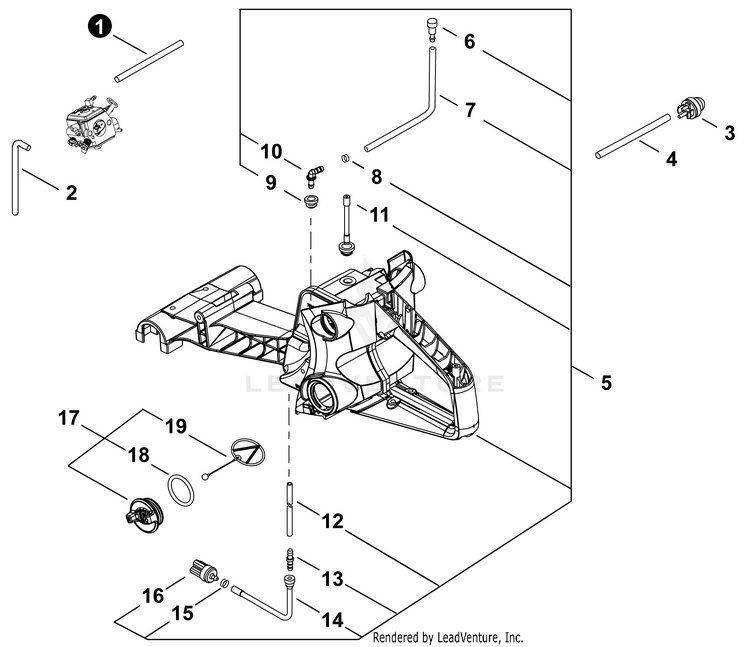

Fuel System

...
...
1
PIPE, PULSE 3x6x135 ECH-V470001640
...
2
PIPE, PULSE 3x6x110 ECH-V471002800
...
3
BULB, PURGE ECH-A035000040
...
4
PIPE, FUEL ECH-V470001650
...
5
HANDLE ASSY, REAR Includes Items 6-16 ECH-P100006912
...
6
VENT ASSY ECH-A356000190
...
7
PIPE, FUEL 3x5x255 ECH-V471005401
...
8
CLIP ECH-V490000580
...
9
GROMMET, FUEL ECH-V137000131
...
10
CONNECTOR, PIPE ECH-V186000530
...
11
PIPE ECH-V470002131
...
12
PIPE, FUEL 3x6x75 ECH-V471003971
...
13
CONNECTOR, PIPE ECH-V186000510
...
14
PIPE, FUEL ECH-V470001991
...
15
CLIP 6 ECH-V490000500
...
16
FILTER, FUEL ECH-A369000540
...
17
CAP ASSY, FUEL Includes Items 18-19 ECH-P100004891
...
18
O-RING 29 ECH-V581000600
...
19
CONNECTOR, CAP L= 60 MM ECH-A365000050
...
...
...
...
...
