Echo CSG-7410 S/N: C72715001001 - C72715999999 Cut-Off Saw

Model: CSG-7410 S/N: C72715001001 - C72715999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

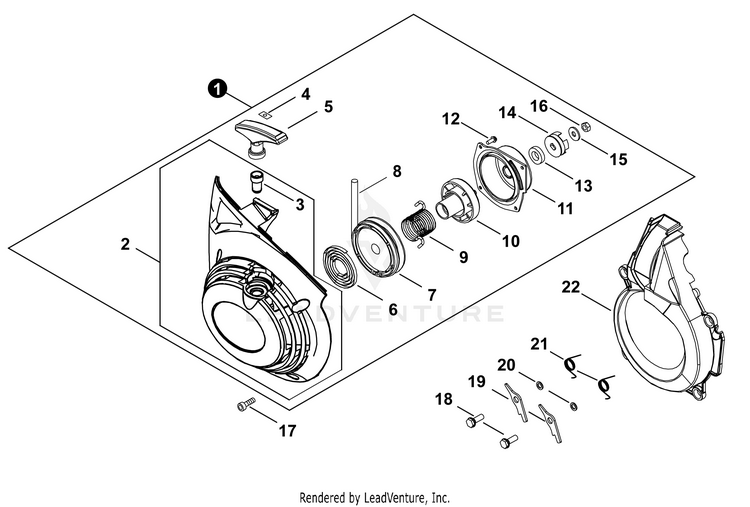

Recoil Starter

...
...
1
STARTER ASSY Includes Items 2-16 ECH-A051003400
...
2
CASE ASSY, STARTER Includes Item 3 ECH-P022052320
...
3
GUIDE, ROPE ECH-P022039940
...
4
RETAINER, ROPE ECH-P022037670
...
5
GRIP, STARTER ECH-A511000210
...
6
SPRING, SPIRAL ECH-P022004680
...
7
REEL, ROPE ECH-A506000420
...
8
ROPE, STARTER ECH-A509000410
...
9
SPRING, TORSION ECH-V452001010
...
10
SHAFT, STARTER ECH-A501000030
...
11
COVER ECH-A519000040
...
12
SCREW, TAPPING ECH-P022019940
...
13
SEAL, OIL ECH-V505000150
...
14
CATCHER, PAWL ECH-P022039950
...
15
WASHER ECH-V304000310
...
16
NUT, HEX M6 ECH-90050000006
...
17
BOLT 5 ECH-V203002240
...
18
BOLT ECH-V204000720
...
19
RATCHET ECH-A514000240
...
20
COLLAR ECH-V304000300
...
21
SPRING, COIL ECH-V452000990
...
22
COVER, FAN ECH-A172002970
...
...
...
...
...
