Echo CSG-7410 S/N: C72715001001 - C72715999999 Cut-Off Saw

Model: CSG-7410 S/N: C72715001001 - C72715999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

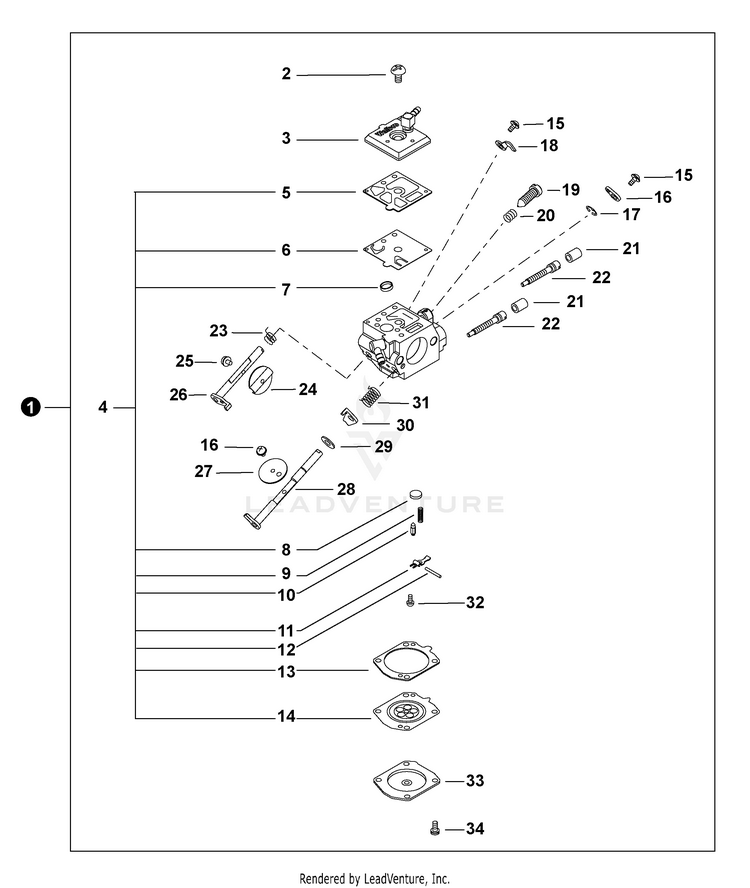

Carburetor

...
...
1
CARBURETOR – HDA-343 Includes Items 2-34 ECH-A021004910
...
2
SCREW ECH-12311016130
...
3
COVER, FUEL PUMP ECH-P003006150
...
4
REPAIR KIT, CARBURETOR Includes Items 5-14 ECH-P021054180
...
5
GASKET, FUEL PUMP ECH---
...
6
DIAPHRAGM, FUEL PUMP ECH---
...
7
SCREEN, FUEL INLET ECH---
...
8
PLUG, WELCH ECH---
...
9
SPRING, METERING LEVER ECH---
...
10
VALVE, INLET NEEDLE ECH---
...
11
LEVER, METERING ECH---
...
12
PIN, METERING LEVER ECH---
...
13
GASKET, METERING DIAPHRAGM ECH---
...
14
DIAPHRAGM, METERING ECH---
...
15
SCREW ECH-12311438830
...
16
LEVER, THROTTLE ECH-P003003020
...
17
E-RING ECH-12312715030
...
18
STOP, THROTTLE ECH-12315630830
...
19
SCREW, IDLE ADJUST ECH-P003003650
...
20
SPRING, IDLE ADJUST ECH-12313304260
...
21
CAP, LIMITER ECH-P003000010
...
22
NEEDLE, MIXTURE ECH-P003006160
...
23
SPRING, THROTTLE RETURN ECH-P003000560
...
24
VALVE, THROTTLE ECH-12313216130
...
25
SCREW ECH-P003002380
...
26
SHAFT ASSY, THROTTLE ECH-P003003320
...
27
VALVE, CHOKE ECH-P003006170
...
28
SHAFT ASSY, CHOKE ECH-P003003340
...
29
WASHER ECH-12314926030
...
30
LEVER, FAST IDLE ECH-P003000620
...
31
SPRING, CHOKE RETURN ECH-P003000610
...
32
SCREW ECH-P003005400
...
33
COVER, DIAPHRAGM ECH-P003003300
...
34
SCREW ECH-12313002960
...
...
...
...
...
