Echo CSG-7410 S/N: C72715001001 - C72715999999 Cut-Off Saw

Model: CSG-7410 S/N: C72715001001 - C72715999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

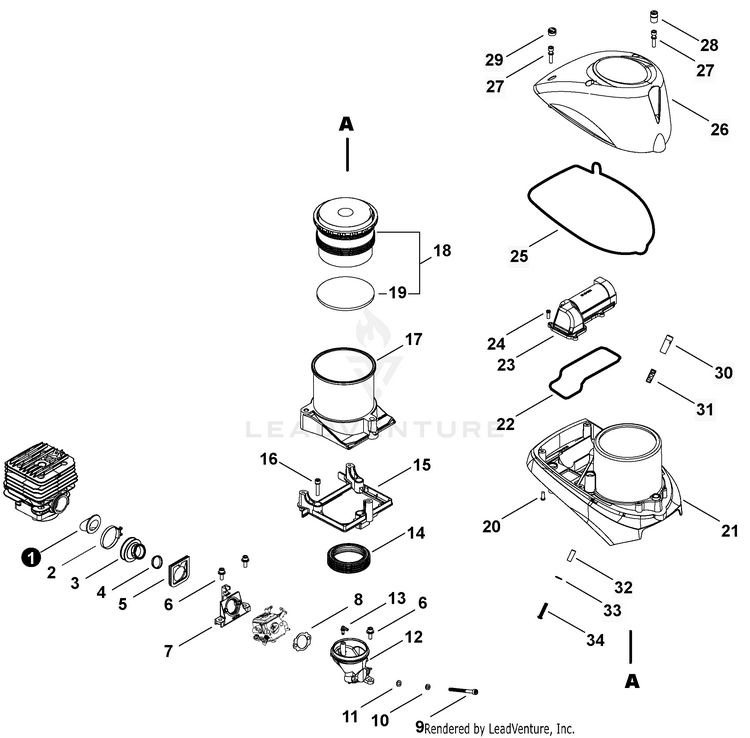

Intake

...
...
1
PIPE, INTAKE ECH-A239000100
...
2
BAND ECH-V495002480
...
3
BELLOWS, INTAKE ECH-A202000280
...
4
SLEEVE 18 ECH-V360000120
...
5
SEAL ECH-A203000070
...
6
BOLT 5 ECH-V203002230
...
7
INSULATOR, INTAKE ECH-A200001111
...
8
GASKET, INTAKE ECH-V103001270
...
9
BOLT 5x60 ECH-90010505060
...
10
WASHER, SPRING 5 ECH-90060500005
...
11
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
12
ELBOW, CARBURETOR ECH-A204000241
...
13
CONNECTOR, PIPE ECH-V186000530
...
14
SEAL ECH-A203000060
...
15
SUPPORT, FILTER ECH-A163000050
...
16
BOLT M5x25 ECH-V203000630
...
17
CASE ASSY, AIR FILTER ECH-E616000100
...
18
FILTER KIT, AIR Includes Item 20 ECH-P021052670
...
19
FILTER, DISK ECH-A226002240
...
20
SCREW 4 ECH-V252000630
...
21
COVER, AIR FILTER ECH-A232001990
...
22
SEAL, AIR FILTER ECH-A228000070
...
23
COVER, AIR FILTER ECH-A232001980
...
24
SCREW 4 ECH-V252000630
...
25
SEAL, CLEANER ECH-A228000080
...
26
COVER, CYLINDER ECH-A160003590
...
27
BOLT 5 ECH-V203002240
...
28
GROMMET, PLUG ECH-V141000170
...
29
GROMMET, PLUG ECH-V141000160
...
30
SHAFT, DECOMPRESSSION ECH-A607000040
...
31
SPRING, COMPRESSION ECH-V450002280
...
32
COLLAR ECH-V353000740
...
33
WASHER 5.5x12x0.8 ECH-90060300005
...
34
SCREW 5 ECH-V253000850
...
...
...
...
...
