Echo CSG-7410 S/N: C72715001001 - C72715999999 Cut-Off Saw

Model: CSG-7410 S/N: C72715001001 - C72715999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

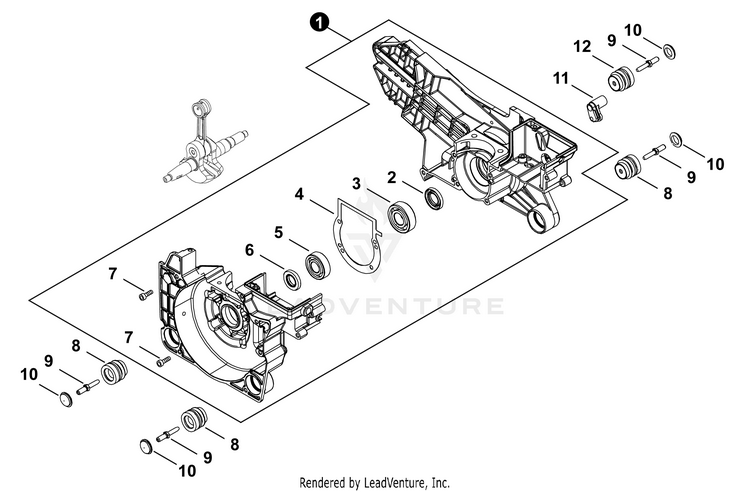

Crankcase

...
...
1
CRANKCASE ASSY Includes Items 2-7 ECH-P021052661
...
2
SEAL, OIL 17 ECH-V510000030
...
3
BEARING, BALL 6203 ECH-9400036203
...
4
GASKET, CRANKCASE ECH-V102000280
...
5
BEARING, BALL 6202 ECH-90081036202
...
6
SEAL, OIL 17 ECH-V508000080
...
7
BOLT 5 ECH-V203002220
...
8
CUSHION ECH-V401000350
...
9
BOLT 5 ECH-V203001650
...
10
PLUG ECH-V421000050
...
11
GROMMET, NEEDLE ECH-V131000240
...
12
CUSHION 5 ECH-V401000430
...
...
...
...
...
