Echo CSG-7410 S/N: C72715001001 - C72715999999 Cut-Off Saw

Model: CSG-7410 S/N: C72715001001 - C72715999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

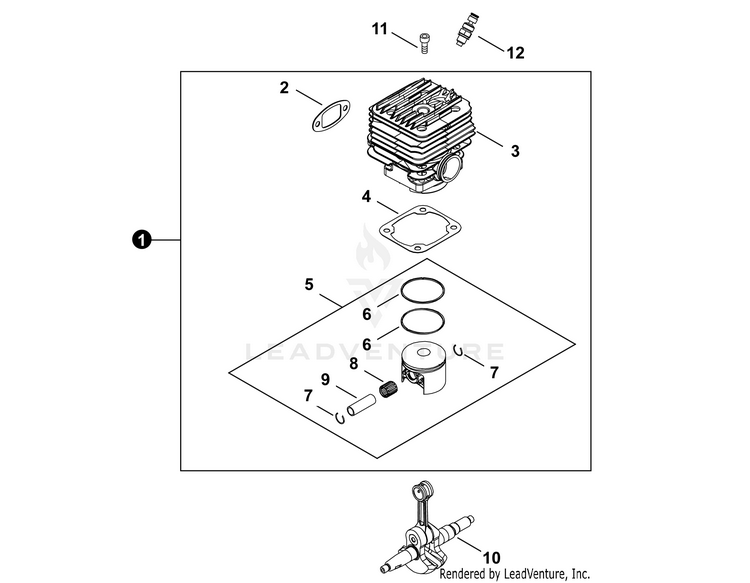

Cylinder, Piston, Crankshaft

...
...
1
CYLINDER/PISTON KIT Includes Items 2-9 ECH-P021052720
...
2
GASKET, EXHAUST ECH-V104002270
...
3
CYLINDER ECH-A130002360
...
4
GASKET, CYLINDER ECH-V100000580
...
5
PISTON KIT Includes Items 6-9 ECH-P021052650
...
6
RING, PISTON ECH-A101000570
...
7
RING, SNAP ECH-V580000060
...
8
BEARING, NEEDLE 12 ECH-V557000030
...
9
PIN, PISTON 12 ECH-V610000010
...
10
CRANKSHAFT ASSY ECH-A011001430
...
11
BOLT 6 ECH-V204000690
...
12
DECOMPRESSION ASSY ECH-A014000130
...
...
...
...
...
