Echo CSG-680 S/N: C23220001001 - C23220999999 Cut Off Saw

Model: CSG-680 S/N: C23220001001 - C23220999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

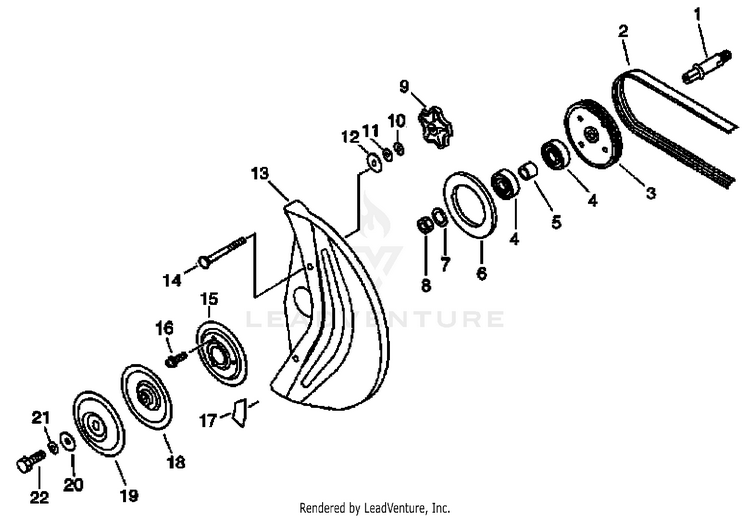

Belt, Cover Cutter

...
...
1
SHAFT, CUTTER ECH-C364000022
...
2
BELT ECH-V196000090
...
3
PULLEY ECH-V176000031
...
4
BEARING, BALL 6202 DDU ECH-90081206202
...
5
COLLAR ECH-60611721860
...
6
PLATE ECH-68902405260
...
7
WASHER M10 ECH-90060200010
...
8
NUT 10 ECH-90050100010
...
9
KNOB, FASTENER ECH-V299000210
...
10
WASHER, SPRING 8 ECH-90060500008
...
11
WASHER 8.5x16x1.2 ECH-90060000008
...
12
WASHER - 8 ECH-V306000110
...
13
COVER, CUTTER ECH-C370000020
...
14
BOLT 8 ECH-V205000300
...
15
PLATE ECH-C371000000
...
16
SCREW 4x10 ECH-90024204010
...
17
LABEL - CAUTION ECH-X505001331
...
18
FLANGE, CUTTER ECH-61101407062
...
19
FLANGE, CUTTER ECH-61101507062
...
20
WASHER ECH-61101905260
...
21
SCREW ECH-900605-00010
...
22
BOLT ECH-V206000160
...
...
...
...
...
